- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for B13JJHCF
- Part Number B13JJHCF
- Manufacturer NKK Switches
- Pin Count 8
- Part Category Switch
- Package Category Other

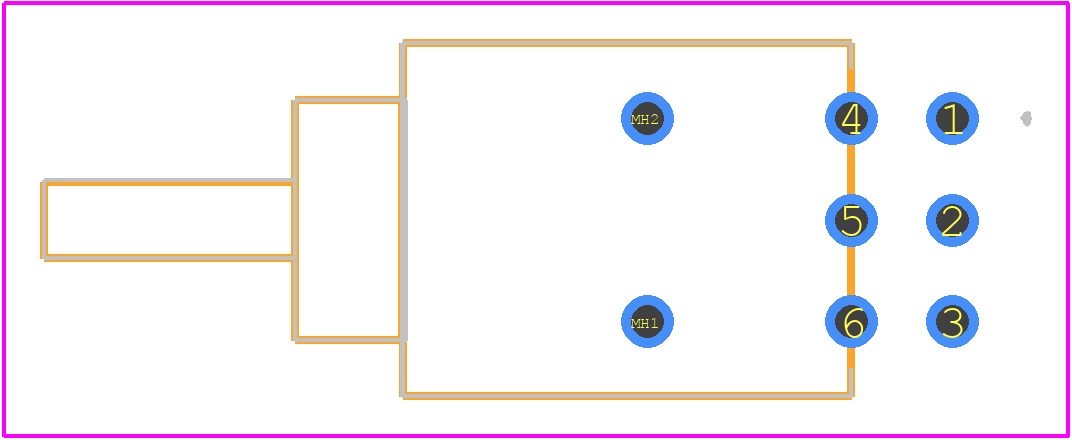

- Footprint Name Other - B13JJHCF-3
- Released Date Oct 14, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
B13JJHCF Details
-
Manufacturer Part Number:
B13JJHCF
-
Brand Name:
NKK Switches
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
NKK Switches
-
JESD-609 Code:
e4
-
Switch Type:
TOGGLE SWITCH
-
Terminal Finish:
GOLD
Trust Checks
Expert Contribution
System Verified
Community Approved
B13JJHCF Overview

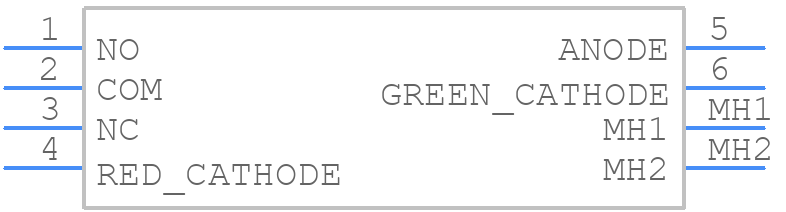

Use the download button to access the B13JJHCF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B13JJ,
or try a keyword search, such as Toggle Switches
