The recommended operating temperature range for the B13JJVCF is -20°C to 70°C, although it can withstand storage temperatures from -40°C to 85°C.
Yes, the B13JJVCF is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a contact resistance of 10mΩ or less.
Yes, the B13JJVCF is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance, and can withstand vibration and shock according to IEC 60068-2-27 and IEC 60068-2-6 standards.
The recommended torque for the B13JJVCF's actuator is 0.5 N·m to 1.5 N·m, although it's essential to consult the datasheet and NKK Switches' guidelines for specific application requirements.
Yes, the B13JJVCF is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in EU and other regions with similar regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B13JJVCF Overview

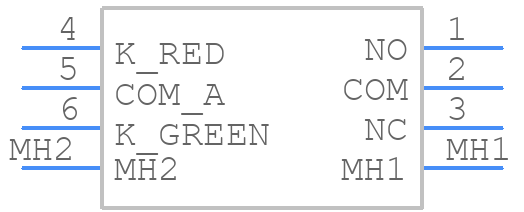

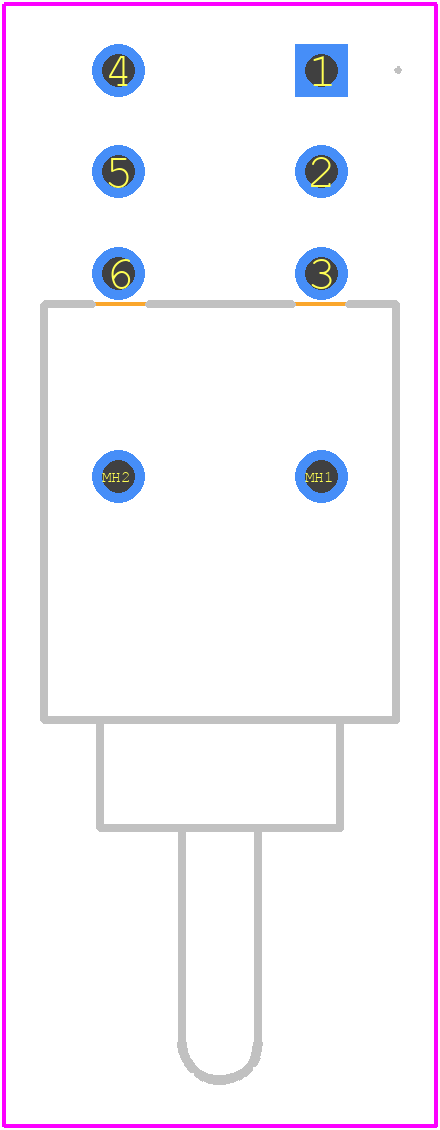

Use the download button to access the B13JJVCF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like B13JJ,
or try a keyword search, such as Toggle Switches
