Part Image

B20J1K0E - Ohmite

Description: Ohmite 200 Series ceramic Axial Power Film Resistor 1000Ω ±5% 20W ±260ppm/°C

Download B20J1K0E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B20J1K0E - Ohmite - PCB symbol
click to zoom
PCB Footprints

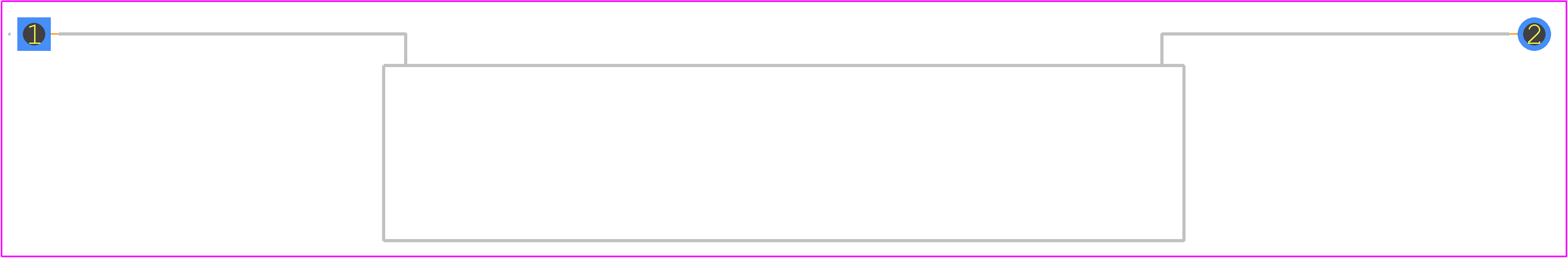

B20J1K0E - Ohmite PCB footprint - Other - Other - B20J1K0E-1
click to zoom
3D Models
B20J1K0E - Ohmite - 3D model - Other - B20J1K0E-1
click to zoom

B20J1K0E Details

  • Manufacturer Part Number:

    B20J1K0E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    10

  • Construction:

    All-Welded

  • JESD-609 Code:

    e3

  • Lead Diameter:

    1.02 mm

  • Lead Length:

    38.1 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    350 °C

  • Package Diameter:

    11.11 mm

  • Package Length:

    50.8 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Rated Power Dissipation (P):

    20 W

  • Rated Temperature:

    25 °C

  • Resistance:

    1000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    260 ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    750 V

B20J1K0E Frequently Asked Questions (FAQs)

  • The thermal resistance of the B20J1K0E is typically around 10°C/W, but this can vary depending on the specific application and mounting method.
  • While the B20J1K0E is a general-purpose resistor, it may not be the best choice for high-frequency applications due to its inductive properties. For high-frequency applications, a non-inductive resistor like the Ohmite Mfg Co's NF series may be a better option.
  • The B20J1K0E has a maximum operating temperature of 150°C, but it's recommended to derate the power rating at higher temperatures to ensure reliability. Consult the datasheet for specific derating guidelines.
  • Yes, the B20J1K0E is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The recommended land pattern for the B20J1K0E can be found in the datasheet or on the Ohmite Mfg Co website. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal issues.
