B20J2K0E - Ohmite

Description: Ohmite B20 Series ceramic Axial Wirewound Resistor 2kΩ ±5% 20W ±260ppm/°C

Download B20J2K0E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B20J2K0E - Ohmite - PCB symbol
click to zoom

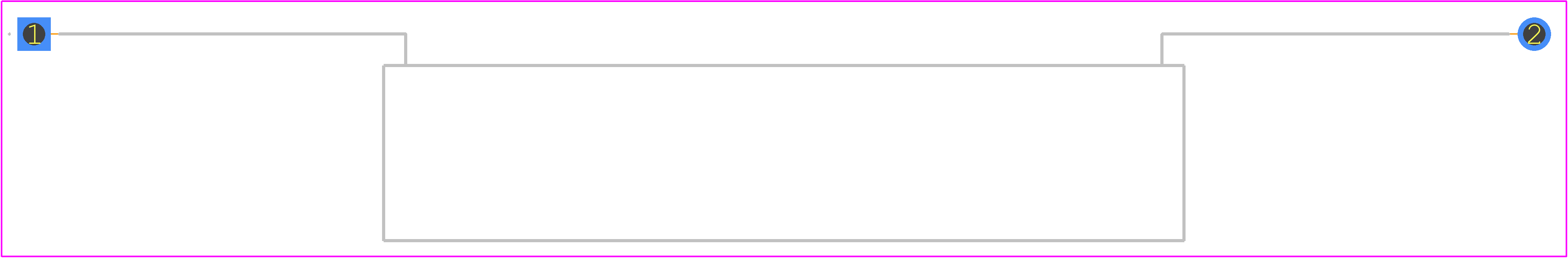

PCB Footprints
B20J2K0E - Ohmite PCB footprint - Other - Other - B20J2K0E-4
click to zoom
3D Models
B20J2K0E - Ohmite - 3D model - Other - B20J2K0E-4
click to zoom

B20J2K0E Details

  • Manufacturer Part Number:

    B20J2K0E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED, ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    10

  • Construction:

    All-Welded

  • JESD-609 Code:

    e3

  • Lead Diameter:

    1.02 mm

  • Lead Length:

    38.1 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    350 °C

  • Package Diameter:

    11.11 mm

  • Package Length:

    50.8 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Rated Power Dissipation (P):

    20 W

  • Rated Temperature:

    25 °C

  • Resistance:

    2000 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    260 ppm/°C

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    750 V

B20J2K0E Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the B20J2K0E is between 250°C to 260°C for a maximum of 3 seconds.
  • While the B20J2K0E is a general-purpose resistor, it's not specifically designed for high-frequency applications. For high-frequency use, consider Ohmite's high-frequency resistor series, such as the HFC or HFZ series.
  • The B20J2K0E has a maximum operating temperature of 150°C. While it can tolerate short-term excursions up to 200°C, prolonged exposure above 150°C may affect its performance and lifespan.
  • The power rating of the B20J2K0E at 70°C is 2.5W. This is lower than the maximum power rating of 5W at 25°C, due to derating for temperature.
  • No, the B20J2K0E is not AEC-Q200 qualified. If you need a resistor that meets automotive industry standards, consider Ohmite's AEC-Q200 qualified resistors, such as the AR series.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B20J2K0E Overview

Use the download button to access the B20J2K0E schematic symbol, PCB footprint, and 3D model.
