B29AB - NKK Switches

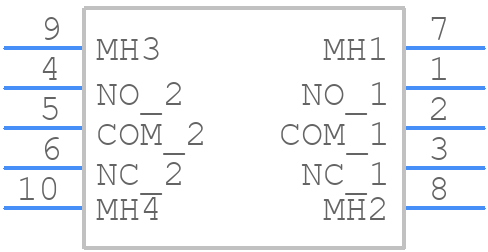

B29AB Details

• Manufacturer Part Number:

  B29AB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.40

• Manufacturer:

  NKK Switches

• YTEOL:

  7

• Actuator Angle:

  26 deg

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.394 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE BAT

• Body Breadth:

  8.7884 mm

• Body Height:

  10.414 mm

• Body Length or Diameter:

  10.16 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.106 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD

• Contact Current(AC)-Max:

  0.014 A

• Contact Current(DC)-Max:

  0.014 A

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-OFF-(ON)

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  28 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  500000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  10

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  GOLD

• Terminal Length:

  0.122 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
