B3100Q-13-F - Diodes Incorporated

Description: Schottky Diodes & Rectifiers Schottky Diode

Download B3100Q-13-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B3100Q-13-F - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

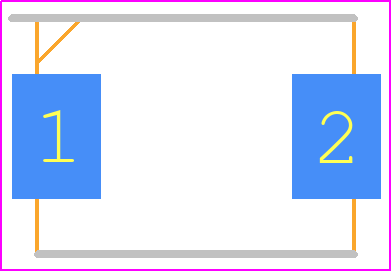

B3100Q-13-F - Diodes Incorporated PCB footprint - Diodes Moulded - Diodes Moulded - B550C-13-F
click to zoom
3D Models
B3100Q-13-F - Diodes Incorporated - 3D model - Diodes Moulded - B550C-13-F
click to zoom

B3100Q-13-F Details

  • Manufacturer Part Number:

    B3100Q-13-F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMC, 2 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    100 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.79 V

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101; IATF16949

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    500 µA

  • Reverse Test Voltage:

    100 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

B3100Q-13-F Frequently Asked Questions (FAQs)

  • A good PCB layout for the B3100Q-13-F should consider the following: keep the input and output traces separate, use a solid ground plane, and minimize the length of the input and output traces. Additionally, place the device close to the power source and use a low-ESR capacitor for decoupling.
  • To ensure the B3100Q-13-F operates within its SOA, monitor the device's voltage, current, and power dissipation. Make sure the input voltage does not exceed the maximum rating, and the output current does not exceed the maximum continuous current rating. Also, ensure the device's junction temperature does not exceed the maximum rating.
  • The recommended input capacitor value is typically in the range of 1-10uF, with a voltage rating that matches or exceeds the input voltage. A low-ESR ceramic or film capacitor is recommended, such as an X5R or X7R dielectric capacitor.
  • To troubleshoot issues with the B3100Q-13-F, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as a high junction temperature or excessive power dissipation. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The B3100Q-13-F is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you provide adequate heat sinking and follow the recommended derating guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B3100Q-13-F Overview

Use the download button to access the B3100Q-13-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3100, or try a keyword search, such as Rectifier Diodes
