TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows. However, it's always best to consult the specific soldering guidelines provided by TDK or to consult with their technical support team for more detailed information.
The B32021A3332M000 is a Class II ceramic capacitor, which means it's designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you may need to consider additional mechanical stress testing or consult with TDK's technical support team to determine the capacitor's suitability for your specific use case.
The ESR of the B32021A3332M000 is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, the ESR value may vary depending on the frequency and temperature of operation. You should consult the datasheet and consider the ESR value in your circuit design to ensure optimal performance.
The B32021A3332M000 has a rated operating temperature range of -55°C to 125°C. While it can handle high temperatures, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the capacitor's performance and reliability in your specific application.
The B32021A3332M000 has a moisture sensitivity level (MSL) of 2, which means it can withstand moderate humidity levels. However, if your application involves extreme humidity or moisture, you may need to consider additional protection measures, such as conformal coating or hermetic sealing, to ensure the capacitor's reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32021A3332M000 Overview

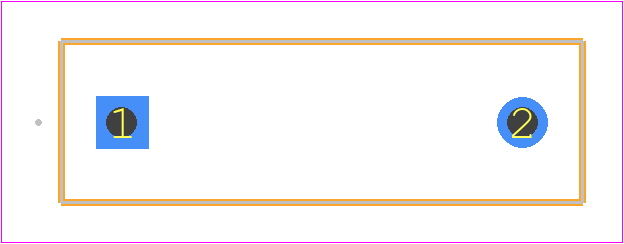

Use the download button to access the B32021A3332M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3202,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
