B32652A7473J000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 0.047uF, 1250V DC, 11mm(W) x 18.5mm(H) x 18mm(L)

Download B32652A7473J000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32652A7473J000 - TDK - PCB symbol
click to zoom
PCB Footprints

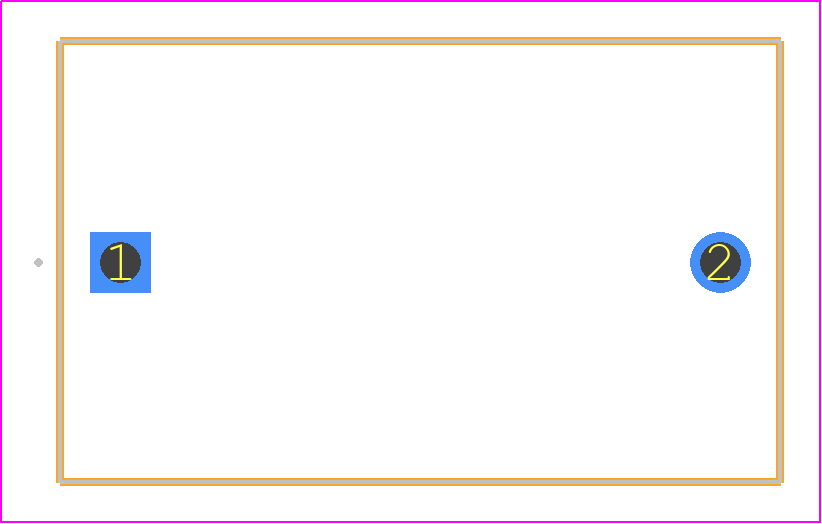

B32652A7473J000 - TDK PCB footprint - Other - Other - B32652_(18_x_11)
click to zoom
3D Models
B32652A7473J000 - TDK - 3D model - Other - B32652_(18_x_11)
click to zoom

B32652A7473J000 Details

  • Manufacturer Part Number:

    B32652A7473J000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.92

  • Capacitance:

    0.047 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    18.5 mm

  • JESD-609 Code:

    e3

  • Length:

    18 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    500 V

  • Rated (DC) Voltage (URdc):

    1250 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    15 mm

  • Terminal Shape:

    WIRE

  • Width:

    11 mm
