TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows. However, it's always best to consult the specific soldering guidelines provided by TDK or to consult with their technical support team for more detailed information.
TDK's aluminum electrolytic capacitors, including the B32652A7473J189, are known for their stable performance over time. However, like all electrolytic capacitors, they do experience some degradation in capacitance and ESR over their lifespan. TDK provides a guideline for capacitance change over time, which is typically around -20% to -30% after 1,000 hours at 105°C. ESR also increases over time, but this can be mitigated by using a lower temperature rating or a longer lifetime rating.
The maximum ripple current rating for the B32652A7473J189 is not explicitly stated in the datasheet. However, TDK provides a ripple current calculation formula in their technical notes, which takes into account the capacitor's impedance, temperature, and other factors. It's recommended to consult TDK's technical support team or to use their online ripple current calculator to determine the maximum ripple current rating for this specific capacitor.
The B32652A7473J189 is a standard-grade aluminum electrolytic capacitor, which may not be suitable for high-reliability or safety-critical applications. TDK offers specialized capacitor series, such as the B41607 or B43707, which are designed for high-reliability and safety-critical applications. These capacitors have undergone additional testing and qualification to ensure their performance and reliability in demanding environments.
The B32652A7473J189 is suitable for use in DC-DC converters and switching power supplies, but it's essential to ensure that the capacitor's specifications meet the requirements of the specific application. The capacitor's voltage rating, capacitance, and ESR should be carefully considered, and the ripple current rating should be calculated to ensure the capacitor can handle the expected current and voltage stresses.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32652A7473J189 Overview

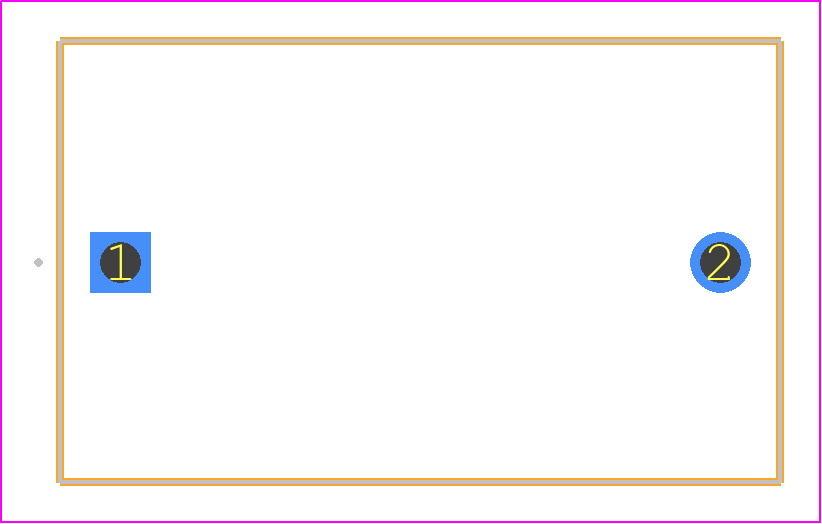

Use the download button to access the B32652A7473J189 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3265,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
