TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
Yes, the B32716H9206K000 is designed to withstand high vibrations. It meets the IEC 60068-2-6 vibration test standard, which involves sinusoidal vibrations of 10-2000 Hz at an amplitude of 1.5 mm.
The B32716H9206K000 is designed to operate in humid environments. It meets the IEC 60068-2-78 humidity test standard, which involves exposure to 85°C (185°F) and 85% relative humidity for 1000 hours.
TDK recommends storing the B32716H9206K000 capacitors in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 60% or less.
Yes, the B32716H9206K000 capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including temperature, vibration, and humidity testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32716H9206K000 Overview

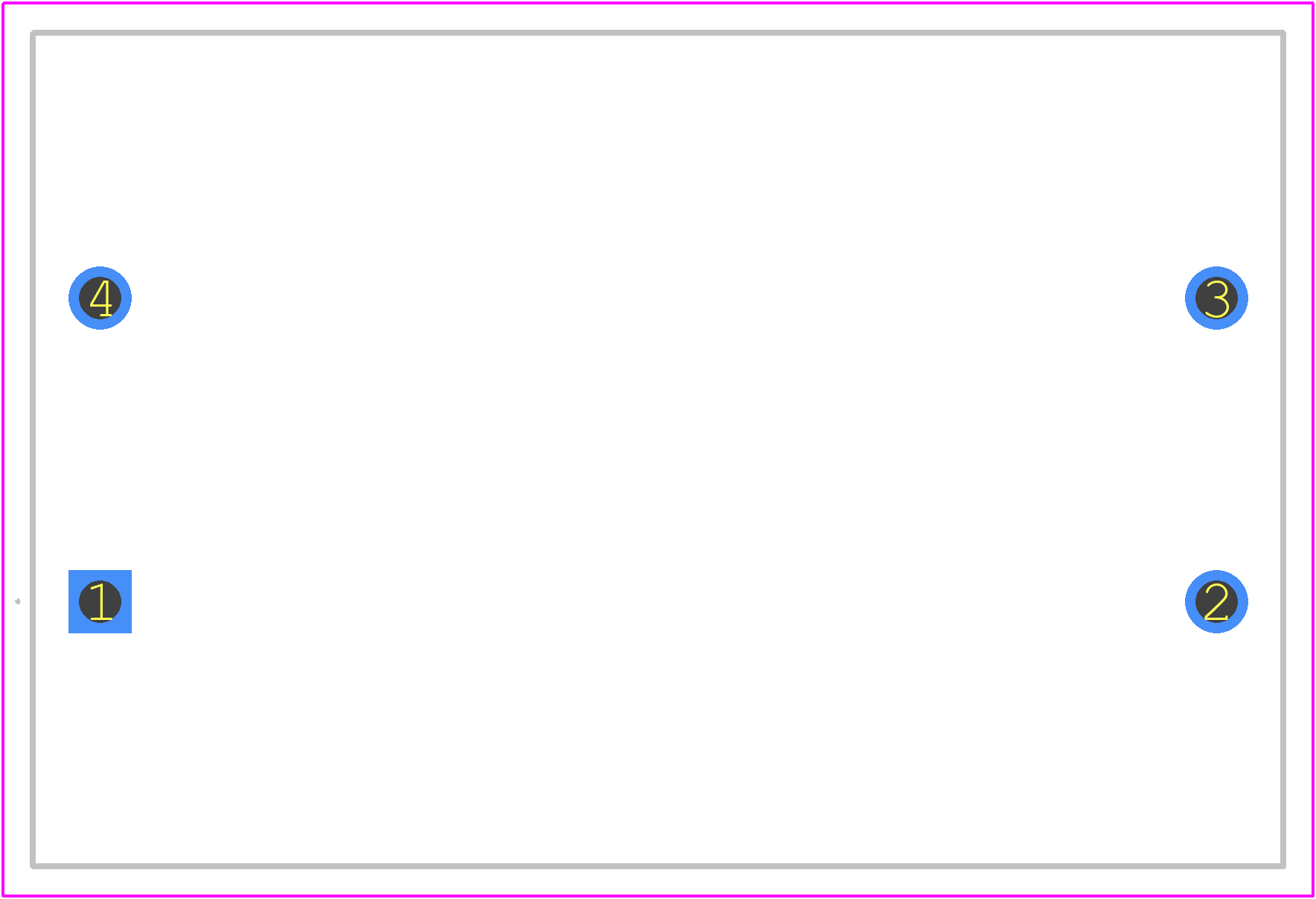

Use the download button to access the B32716H9206K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3271,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
