B32718H8117K000 - TDK

Description: RoHS; Reach; Pb ; Capacitance. 110μF ±10% ; Rated Voltage [DC]. 800V ; Rate of Voltage Rise. 15V/μs

Download B32718H8117K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32718H8117K000 - TDK - PCB symbol
click to zoom
PCB Footprints

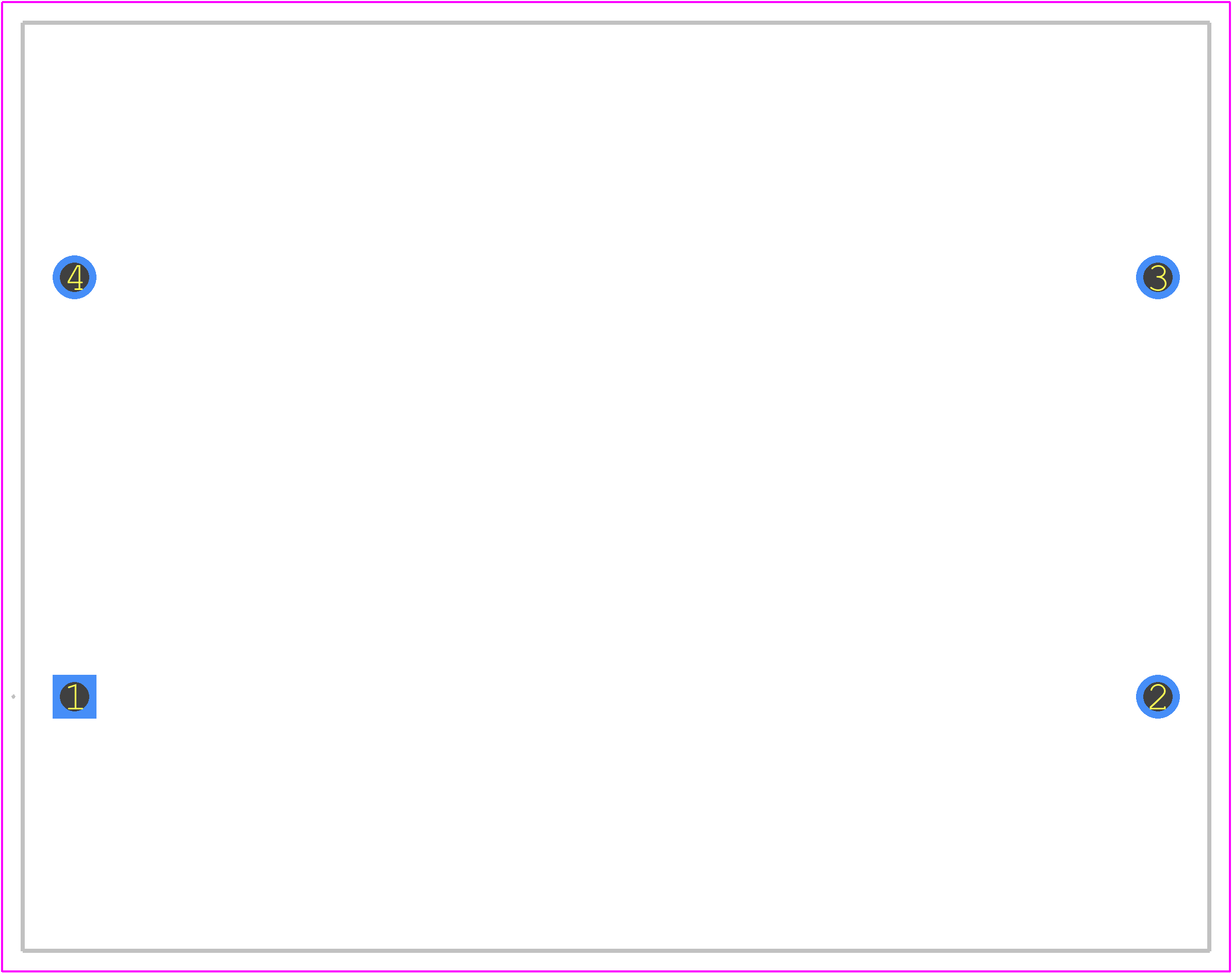

B32718H8117K000 - TDK PCB footprint - Other - Other - B32718H8117K000-2
click to zoom
3D Models
B32718H8117K000 - TDK - 3D model - Other - B32718H8117K000-2
click to zoom

B32718H8117K000 Details

  • Manufacturer Part Number:

    B32718H8117K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    110 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    800 V

  • Reference Standard:

    AEC-Q200; UL

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

B32718H8117K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B32718H8117K000 is between 250°C to 260°C, with a maximum temperature of 265°C for a short duration (less than 10 seconds).
  • Yes, B32718H8117K000 is designed to withstand high-vibration environments. It has a vibration resistance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and can operate in temperatures up to 125°C.
  • The ESR of B32718H8117K000 is 30 mΩ maximum at 100 kHz and 20°C.
  • Yes, B32718H8117K000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for B32718H8117K000 is in a dry, cool place with a temperature range of -30°C to 40°C and relative humidity below 70%.
