TDK recommends a soldering temperature profile with a peak temperature of 260°C for a maximum of 10 seconds, and a minimum of 2°C/second temperature rise and fall rate.
Yes, this capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G.
The ESR of the B32718H8506K000 capacitor is approximately 30 mΩ at 100 kHz and 20°C.
Yes, this capacitor is suitable for use in DC-DC converter applications due to its low ESR and high ripple current rating.
The MSL of the B32718H8506K000 capacitor is MSL 2, which means it can withstand a maximum of 4 days exposure to a humidity level of 60% at 30°C before soldering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32718H8506K000 Overview

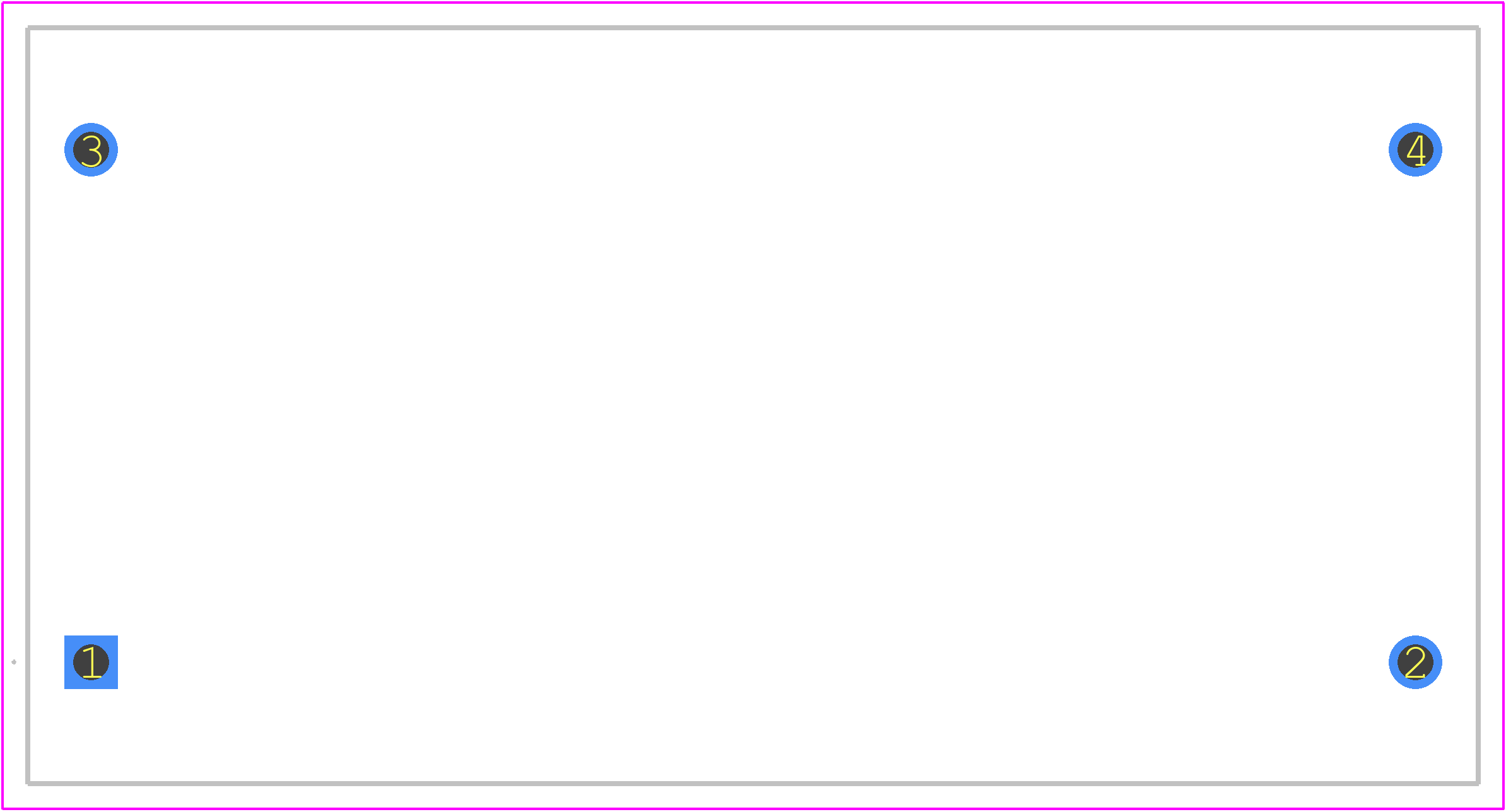

Use the download button to access the B32718H8506K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3271,
or try a keyword search, such as Ceramic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
