The recommended soldering temperature for B32776G0146K000 is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
Yes, the B32776G0146K000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
The ESR of the B32776G0146K000 is approximately 10 mohm at 100 kHz, which is relatively low and suitable for high-frequency applications.
While the B32776G0146K000 has a high operating temperature range of -55°C to 125°C, it's not recommended for extreme high-temperature applications. For such cases, consider using capacitors specifically designed for high-temperature environments.
The MSL of the B32776G0146K000 is 2a, which means it can withstand exposure to moisture for up to 4 days without requiring baking or drying before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32776G0146K000 Overview

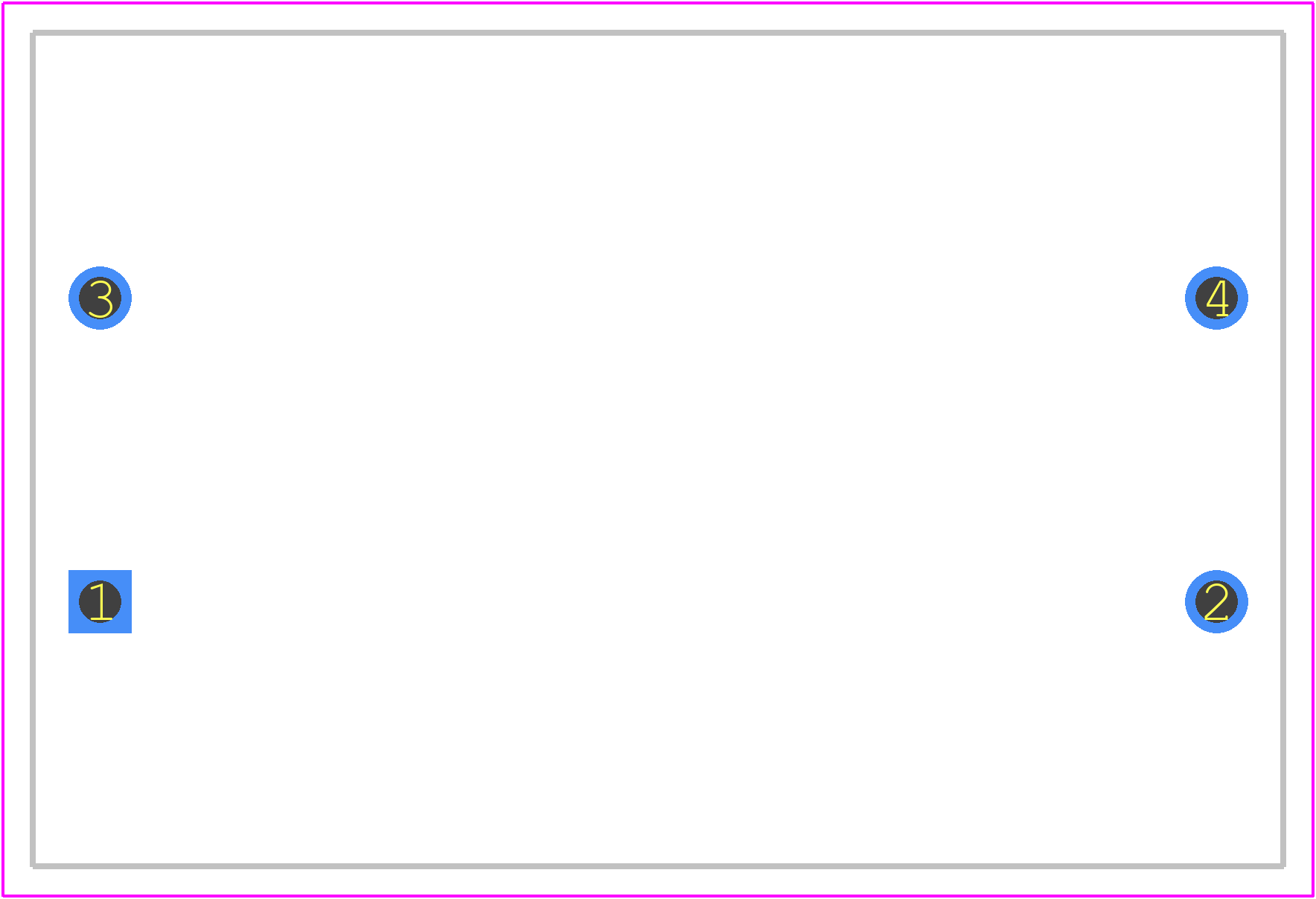

Use the download button to access the B32776G0146K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
