The recommended soldering temperature for B32776G0206K000 is between 250°C to 260°C, with a maximum temperature of 265°C for a short duration (less than 10 seconds).
Yes, B32776G0206K000 is designed to withstand high-vibration environments. It has a vibration resistance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and can operate in temperatures up to 125°C.
Yes, B32776G0206K000 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications. It can operate in temperatures up to 125°C and has a high reliability rating.
The ESR of B32776G0206K000 is 30 mΩ maximum at 100 kHz and 20°C.
Yes, B32776G0206K000 has a moisture resistance rating of 85°C/85% RH, which means it can operate in humid environments without significant degradation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32776G0206K000 Overview

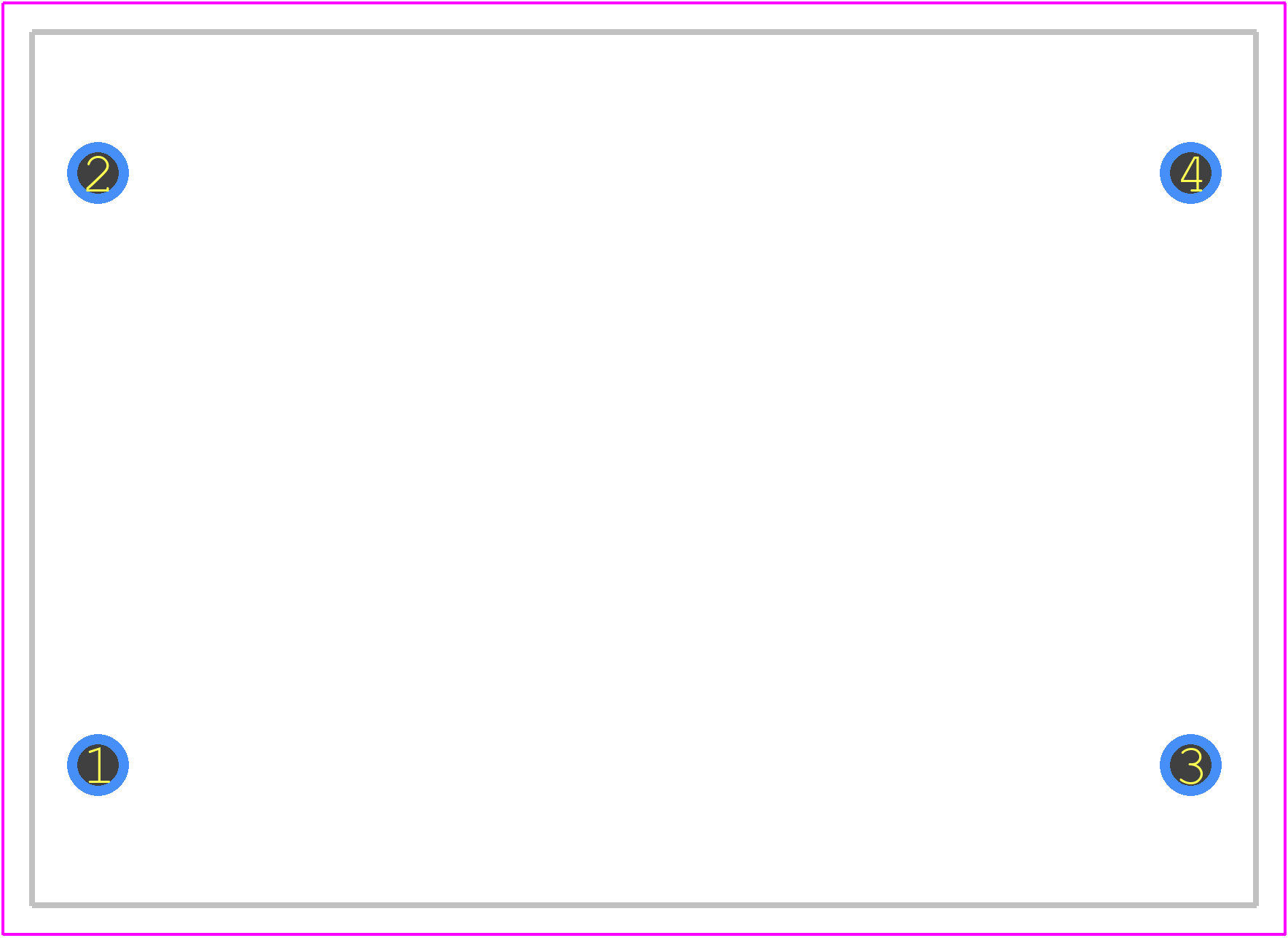

Use the download button to access the B32776G0206K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277,
or try a keyword search, such as Ceramic Capacitors
