B32776G1106K000 - TDK

Description: EPCOS B32776 Polypropylene Film Capacitor, 1.3kV dc, 10%, 10μF, Through Hole

Download B32776G1106K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32776G1106K000 - TDK - PCB symbol
click to zoom

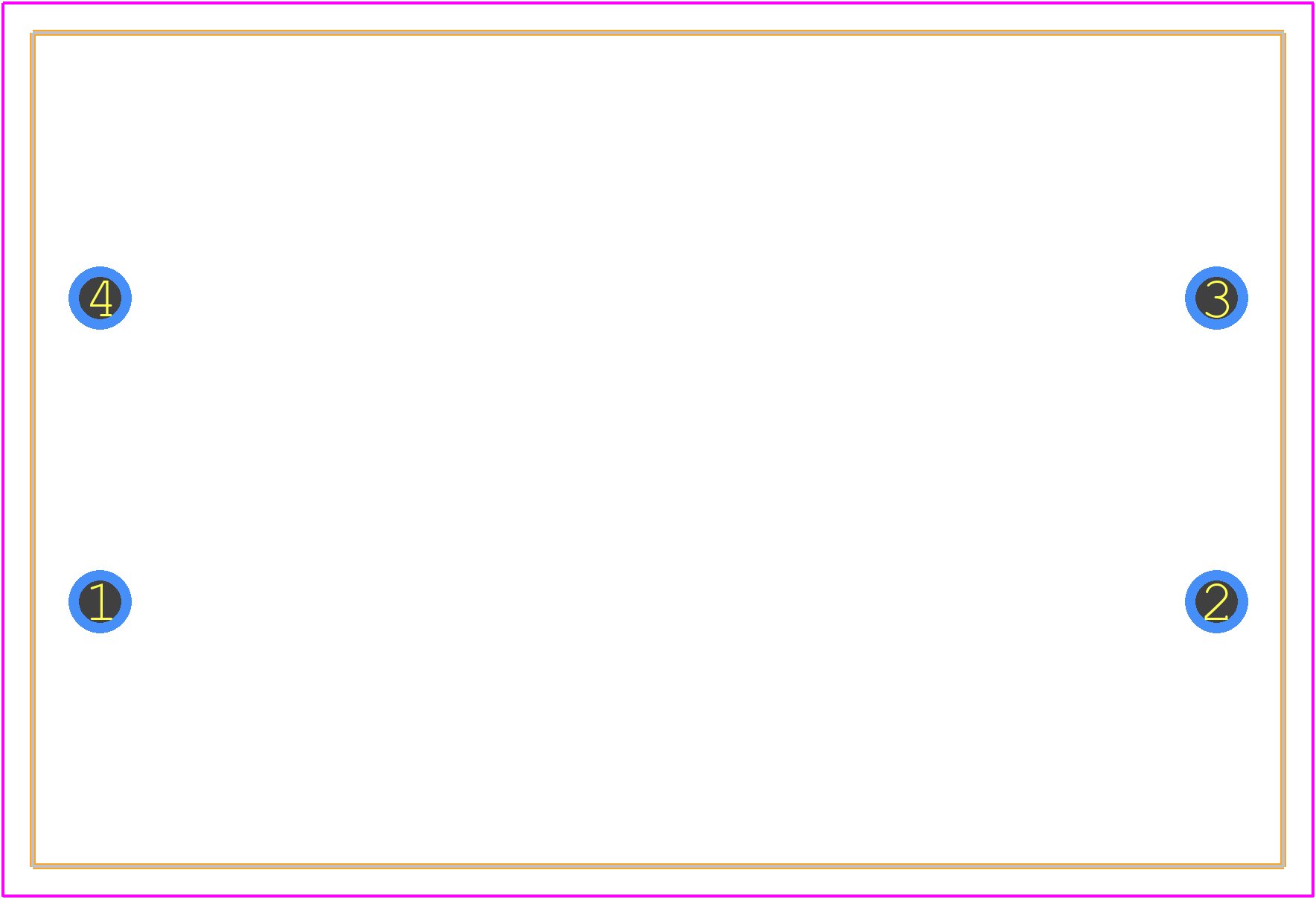

PCB Footprints
B32776G1106K000 - TDK PCB footprint - Other - Other - B32776G1106K000-2
click to zoom
3D Models
B32776G1106K000 - TDK - 3D model - Other - B32776G1106K000-2
click to zoom

B32776G1106K000 Details

  • Manufacturer Part Number:

    B32776G1106K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    10 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    37 mm

  • JESD-609 Code:

    e3

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1300 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Width:

    28 mm

B32776G1106K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the B32776G1106K000 is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the B32776G1106K000 is designed to withstand high vibrations and is suitable for use in applications where vibration is a concern.
  • The B32776G1106K000 is rated for operation up to 125°C, but it's not recommended to use it above 105°C for extended periods. Consult with TDK Corporation for specific guidance.
  • The ESR of the B32776G1106K000 is approximately 10 mohm at 100 kHz, but this value may vary depending on the frequency and operating conditions.
  • Yes, the B32776G1106K000 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32776G1106K000 Overview

Use the download button to access the B32776G1106K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277, or try a keyword search, such as Ceramic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
