B32776G5456K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 45uF, 575V DC, 30mm(W) x 45mm(H) x 42mm(L)

Download B32776G5456K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32776G5456K000 - TDK - PCB symbol
click to zoom
PCB Footprints

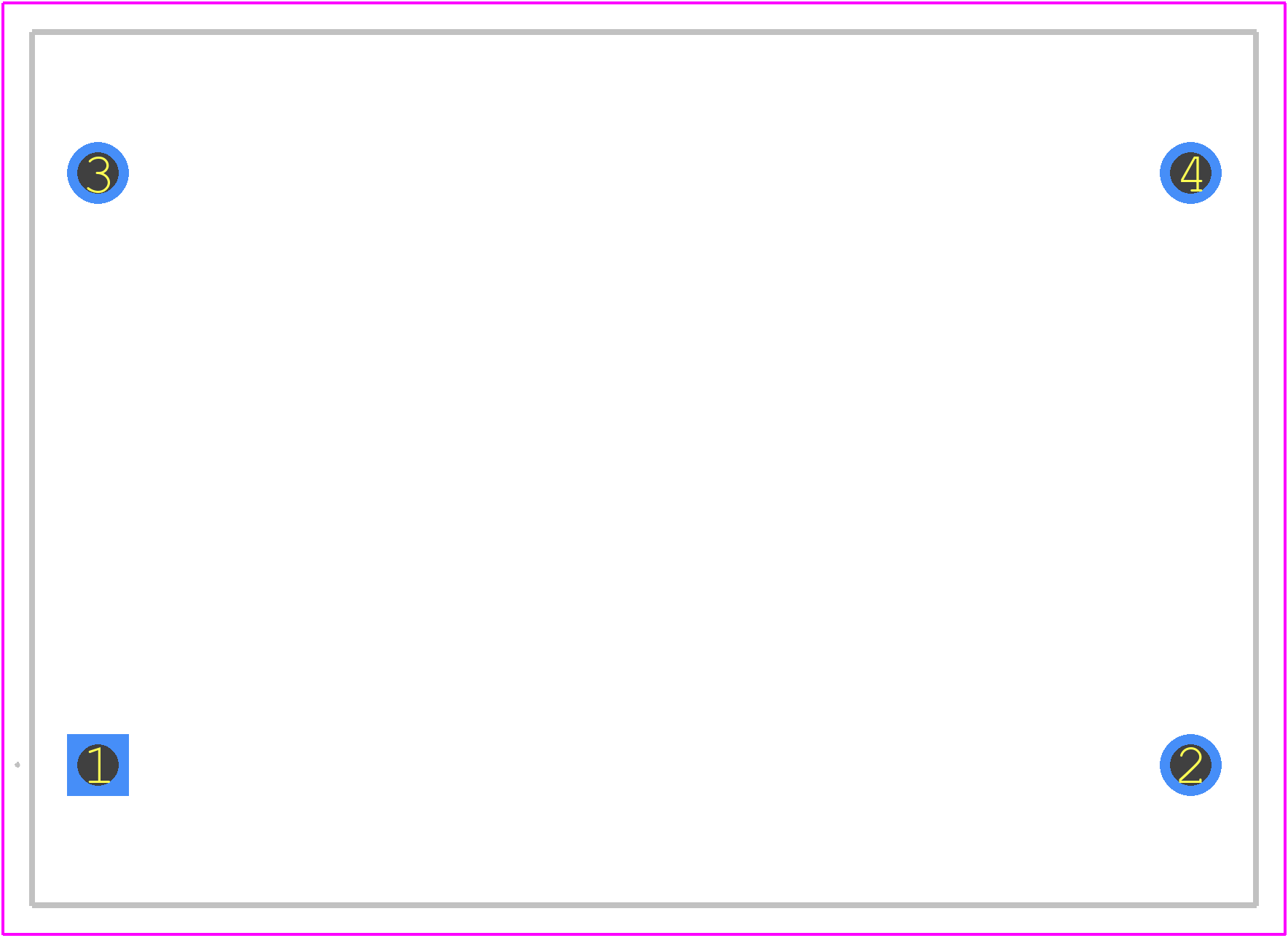

B32776G5456K000 - TDK PCB footprint - Other - Other - SIZE 42.0X30.0X45
click to zoom
3D Models
B32776G5456K000 - TDK - 3D model - Other - SIZE 42.0X30.0X45
click to zoom

B32776G5456K000 Details

  • Manufacturer Part Number:

    B32776G5456K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    45 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    42 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    575 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

B32776G5456K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B32776G5456K000 is between 250°C to 260°C, with a maximum temperature of 265°C for a short duration (less than 10 seconds).
  • Yes, B32776G5456K000 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, with a vibration frequency range of 10 Hz to 2000 Hz and an acceleration of 10 g.
  • Yes, B32776G5456K000 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high temperatures, vibrations, and humidity.
  • The maximum permissible voltage derating for B32776G5456K000 is 10% of the rated voltage, which is 450 VDC in this case. This means the maximum permissible voltage is 405 VDC.
  • Yes, B32776G5456K000 is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, with a relative humidity of 85% and a temperature of 85°C.
