Part Image

B32778G0306J000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 30uF, 1100V DC, 30mm(W) x 45mm(H) x 57.5mm(L)

Download B32778G0306J000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

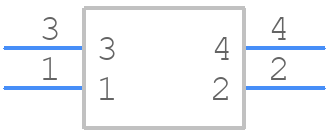

B32778G0306J000 - TDK - PCB symbol
click to zoom
PCB Footprints

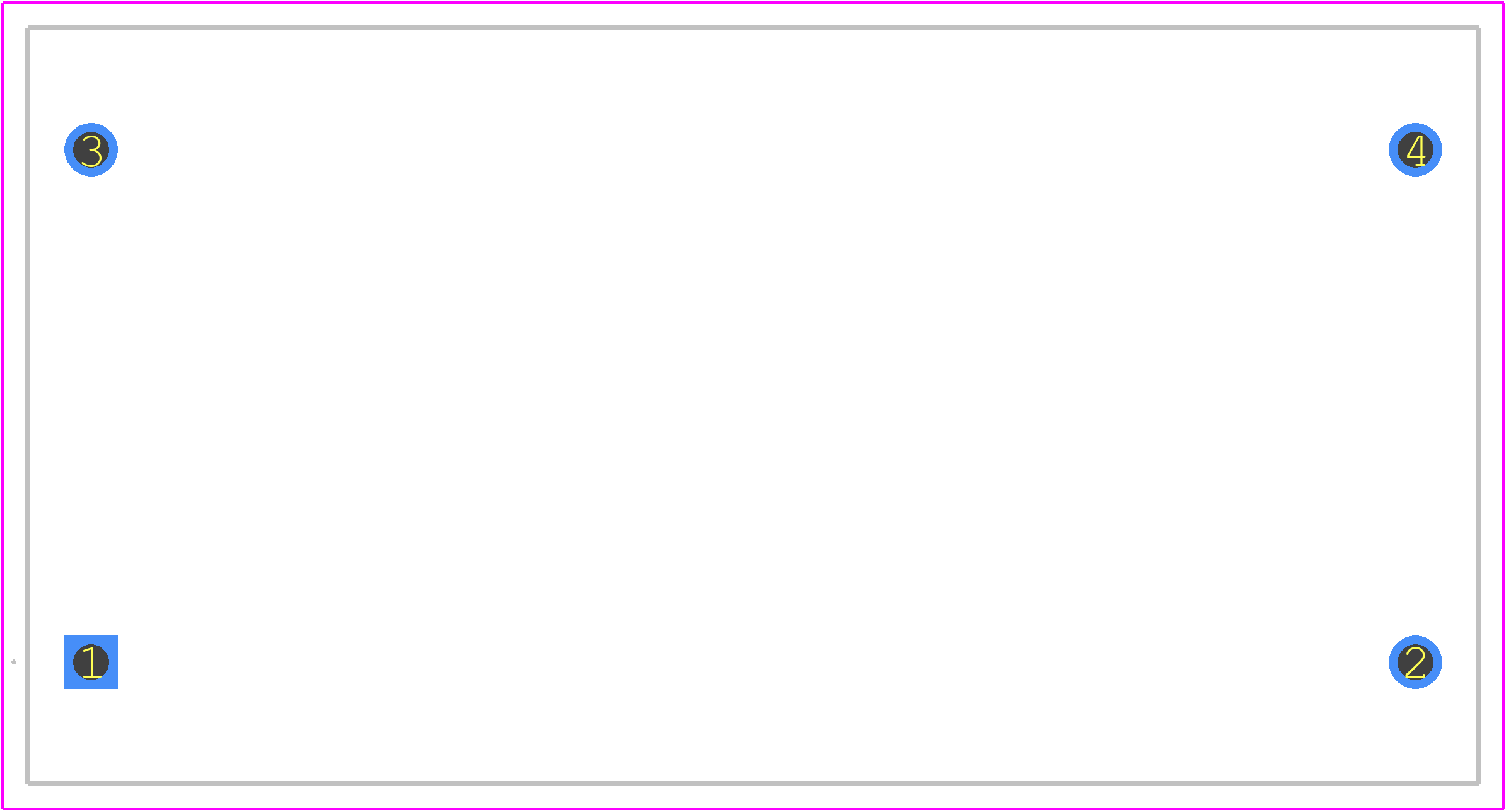

B32778G0306J000 - TDK PCB footprint - Other - Other - 57.5X30.0X45.0
click to zoom
3D Models
B32778G0306J000 - TDK - 3D model - Other - 57.5X30.0X45.0
click to zoom

B32778G0306J000 Details

  • Manufacturer Part Number:

    B32778G0306J000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    30 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    1100 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

B32778G0306J000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B32778G0306J000 can be found in the TDK Corporation's recommended footprint document, which is usually available on their website or through their customer support.
  • The B32778G0306J000 is a sensitive component and should be handled with care. It's recommended to follow standard ESD precautions, such as using an ESD strap or mat, and avoiding touching the component's leads or body.
  • The maximum allowable voltage derating for the B32778G0306J000 can be found in the datasheet or by consulting with TDK Corporation's technical support. Typically, it's recommended to derate the voltage by 10-20% to ensure reliable operation.
  • The B32778G0306J000 has a specified operating temperature range. Exceeding this range may affect the component's performance, reliability, or lifespan. If you need to operate the component in a high-temperature environment, contact TDK Corporation's technical support for guidance.
  • The B32778G0306J000 is a polarized capacitor, and its polarity is marked on the component. Make sure to follow the polarity markings when installing the component on the PCB to avoid damage or malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B32778G0306J000 Overview

Use the download button to access the B32778G0306J000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277, or try a keyword search, such as Film Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
