TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
Yes, the B32778G1276K000 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G (98m/s²). However, it's recommended to consult TDK's vibration test report and perform additional testing to ensure the capacitor meets the specific requirements of your application.
The B32778G1276K000 has a moisture sensitivity level (MSL) of 2a, which means it can withstand a maximum of 24 hours of exposure to 30°C (86°F) and 60% relative humidity. However, it's recommended to follow TDK's guidelines for moisture protection and handling to prevent damage.
The ESR of the B32778G1276K000 capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from TDK. However, it's recommended to consult TDK's application notes or contact their support team for more accurate information.
Yes, the B32778G1276K000 capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of the European Union's directives for environmental protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B32778G1276K000 Overview

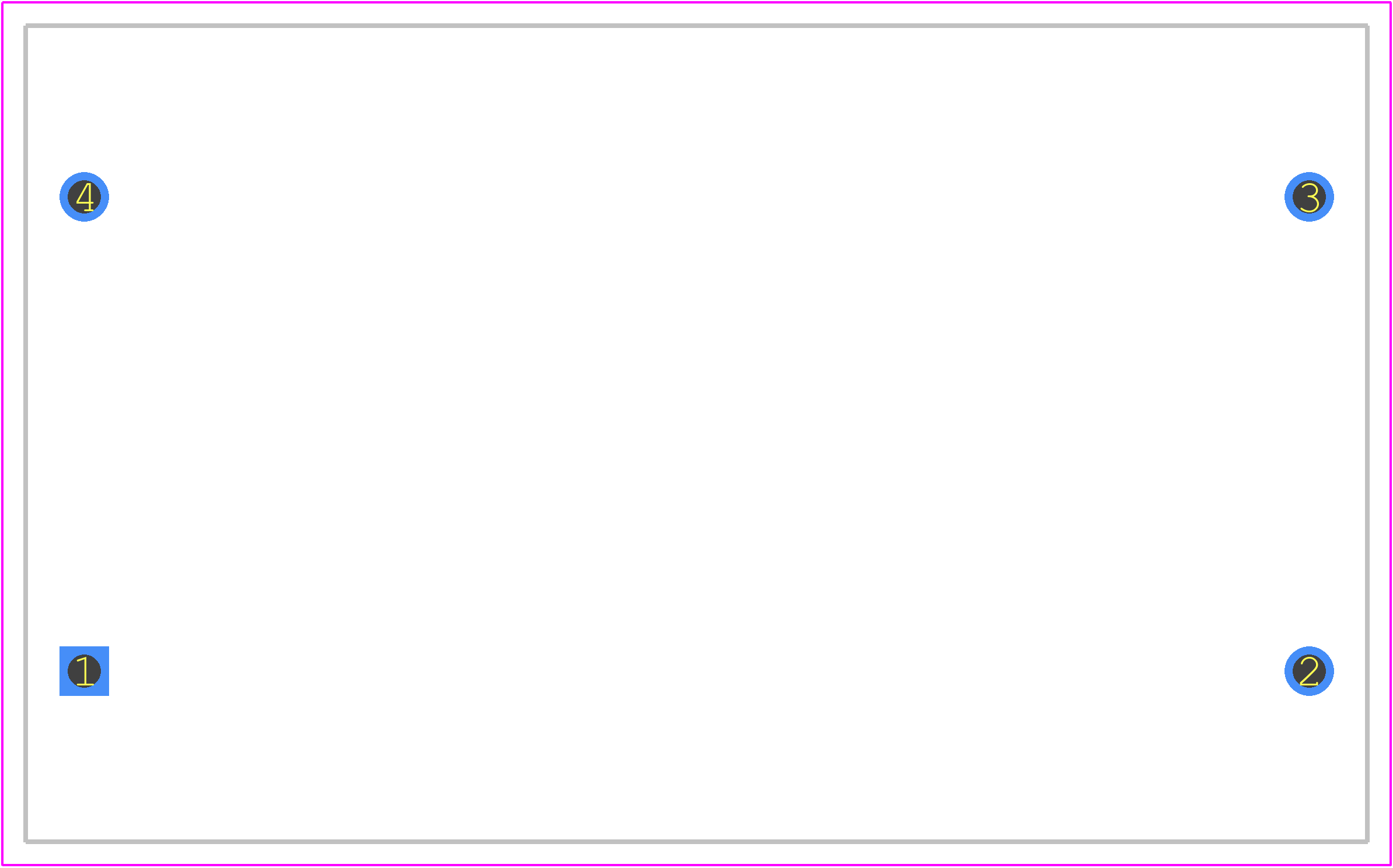

Use the download button to access the B32778G1276K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277,
or try a keyword search, such as Film Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
