B32778G8506K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 50uF, 800V DC, 30mm(W) x 45mm(H) x 57.5mm(L)

Download B32778G8506K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32778G8506K000 - TDK - PCB symbol
click to zoom
PCB Footprints

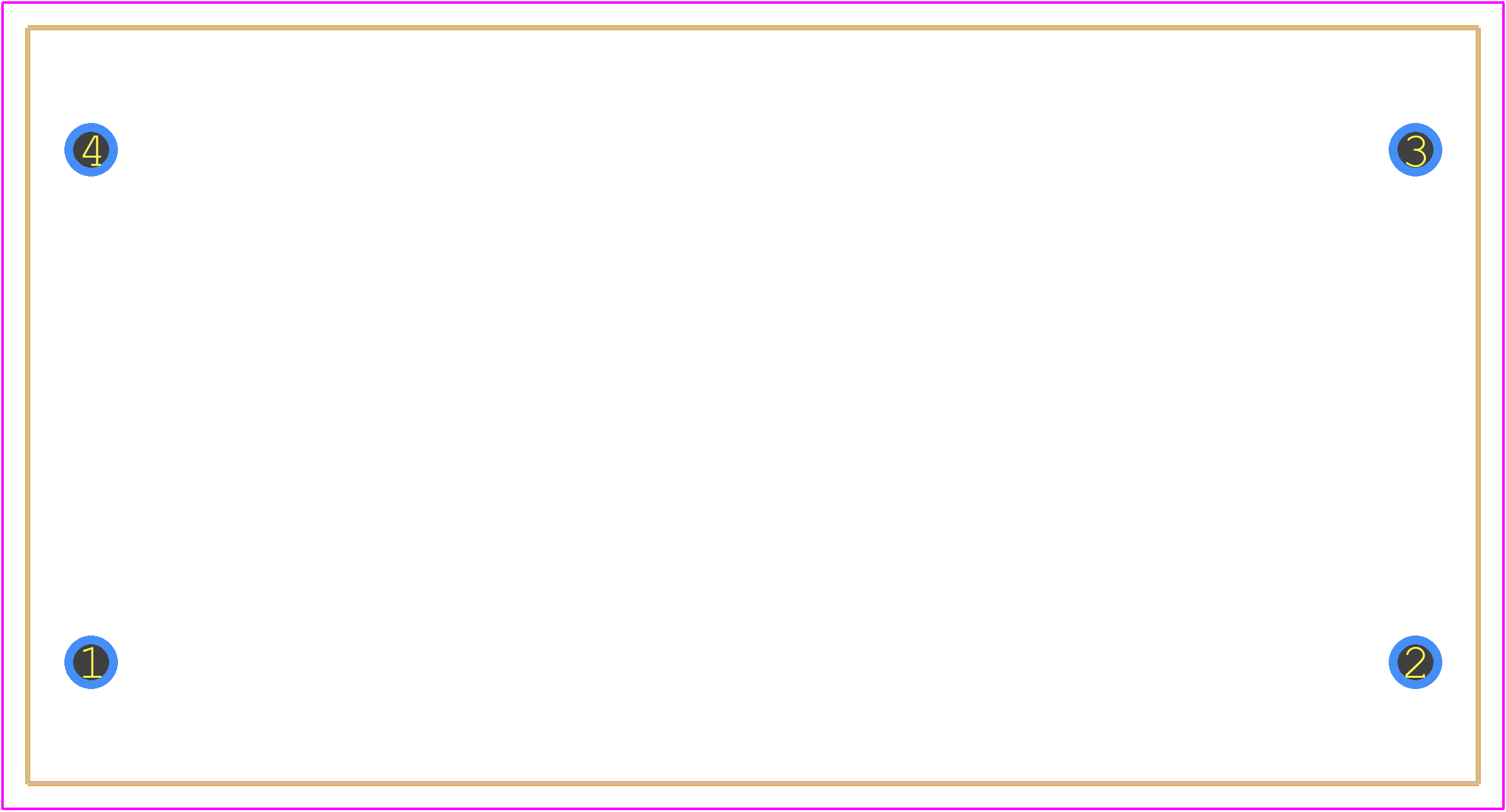

B32778G8506K000 - TDK PCB footprint - Other - Other - B32778G8506K000-1
click to zoom
3D Models
B32778G8506K000 - TDK - 3D model - Other - B32778G8506K000-1
click to zoom

B32778G8506K000 Details

  • Manufacturer Part Number:

    B32778G8506K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    800 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

B32778G8506K000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the B32778G8506K000 is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G (98m/s²). However, it's recommended to consult TDK's vibration test report and perform additional testing to ensure the capacitor meets the specific requirements of your application.
  • The B32778G8506K000 has a moisture sensitivity level (MSL) of 2, which means it can withstand a maximum relative humidity of 60% at 30°C (86°F) for 48 hours. However, it's recommended to follow TDK's storage and handling guidelines to prevent moisture absorption and ensure the capacitor's reliability.
  • The ESR of the B32778G8506K000 capacitor is not explicitly stated in the datasheet. However, according to TDK's application notes, the ESR of similar capacitors in the B32778 series is typically in the range of 10-20 mΩ at 100 kHz.
  • Yes, the B32778G8506K000 capacitor is compatible with lead-free soldering processes and is RoHS-compliant. TDK recommends using a lead-free solder alloy with a melting point of 217°C (423°F) or higher.
