B32778G9506K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 50uF, 900V DC, 35mm(W) x 50mm(H) x 57.5mm(L)

Download B32778G9506K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32778G9506K000 - TDK - PCB symbol
click to zoom
PCB Footprints

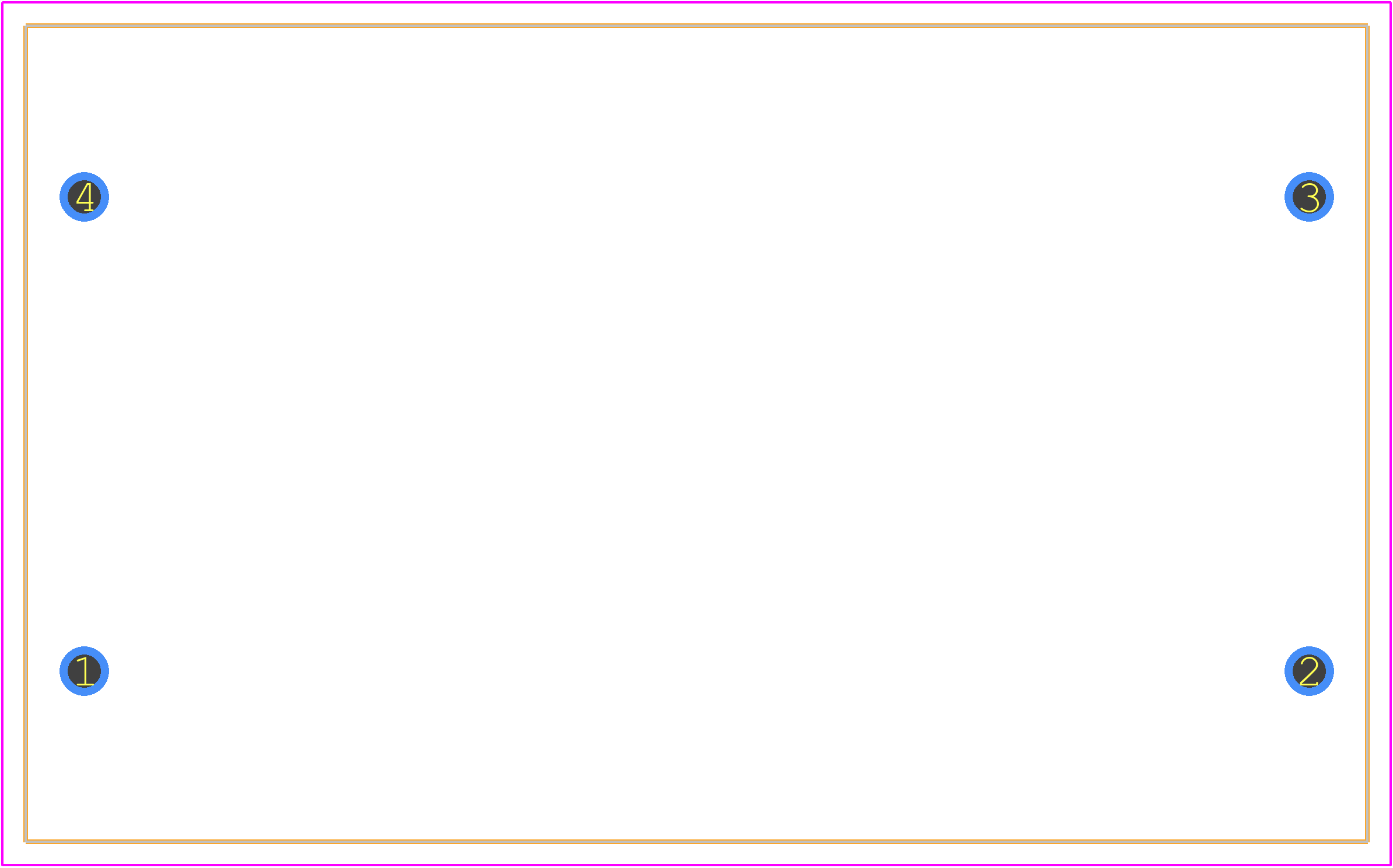

B32778G9506K000 - TDK PCB footprint - Other - Other - B32778G9506K000-3
click to zoom
3D Models
B32778G9506K000 - TDK - 3D model - Other - B32778G9506K000-3
click to zoom

B32778G9506K000 Details

  • Manufacturer Part Number:

    B32778G9506K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Brazil, India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    900 V

  • Reference Standard:

    IEC61071

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    35 mm
