- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for B32778J0207K000
- Part Number B32778J0207K000
- Manufacturer TDK
- Pin Count 12
- Part Category Capacitor
- Package Category Other

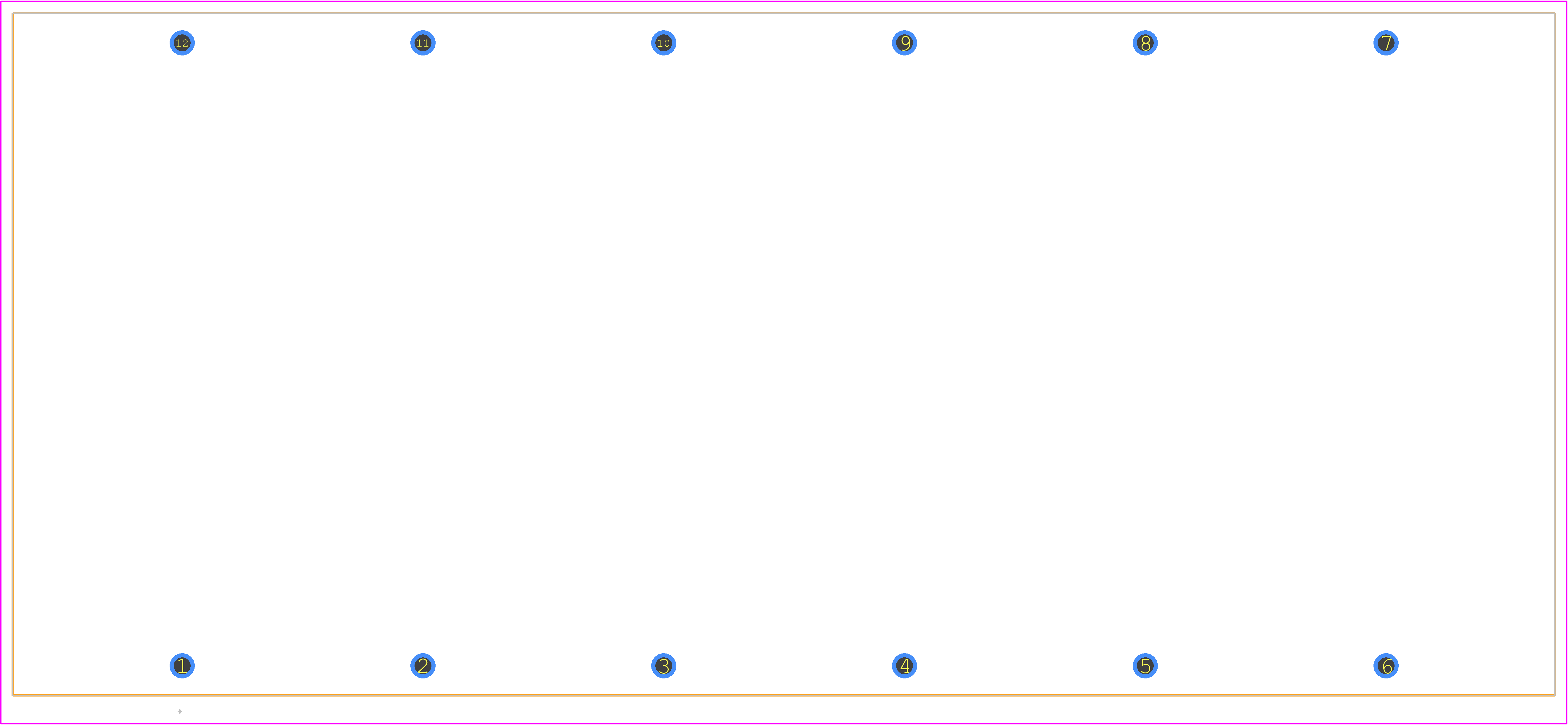

- Footprint Name Other - B32778J0207K000-1
- Released Date Aug 26, 2019
- Last Modified Date Dec 5, 2023 2:52 AM UTC
- Pinout / Pin List Click Here (Member Only)
B32778J0207K000 Details
-
Manufacturer Part Number:
B32778J0207K000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8532.25.00.70
-
Manufacturer:
TDK Corporation
-
YTEOL:
7
-
Capacitance:
200 µF
-
Capacitor Type:
FILM CAPACITOR
-
Dielectric Material:
POLYPROPYLENE
B32778J0207K000 Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for B32778J0207K000 is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
-
Yes, B32778J0207K000 is compatible with lead-free soldering, and it meets the requirements of the RoHS directive.
-
The maximum operating temperature range for B32778J0207K000 is -55°C to +125°C, with a derating of capacitance and impedance above 85°C.
-
Yes, B32778J0207K000 is designed to withstand high vibrations and meets the requirements of IEC 60068-2-6, with a vibration amplitude of 10 mm and a frequency range of 10 Hz to 2000 Hz.
-
The equivalent series resistance (ESR) of B32778J0207K000 is approximately 30 mΩ at 100 kHz and 20°C.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
B32778J0207K000 Overview
Use the download button to access the B32778J0207K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3277,
or try a keyword search, such as Ceramic Capacitors
