B32778P6506K000 - TDK

Description: Film Capacitors 50uF 10% 630Vdc AEC-Q200 LS 52.5MM

Download B32778P6506K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32778P6506K000 - TDK - PCB symbol
click to zoom
PCB Footprints

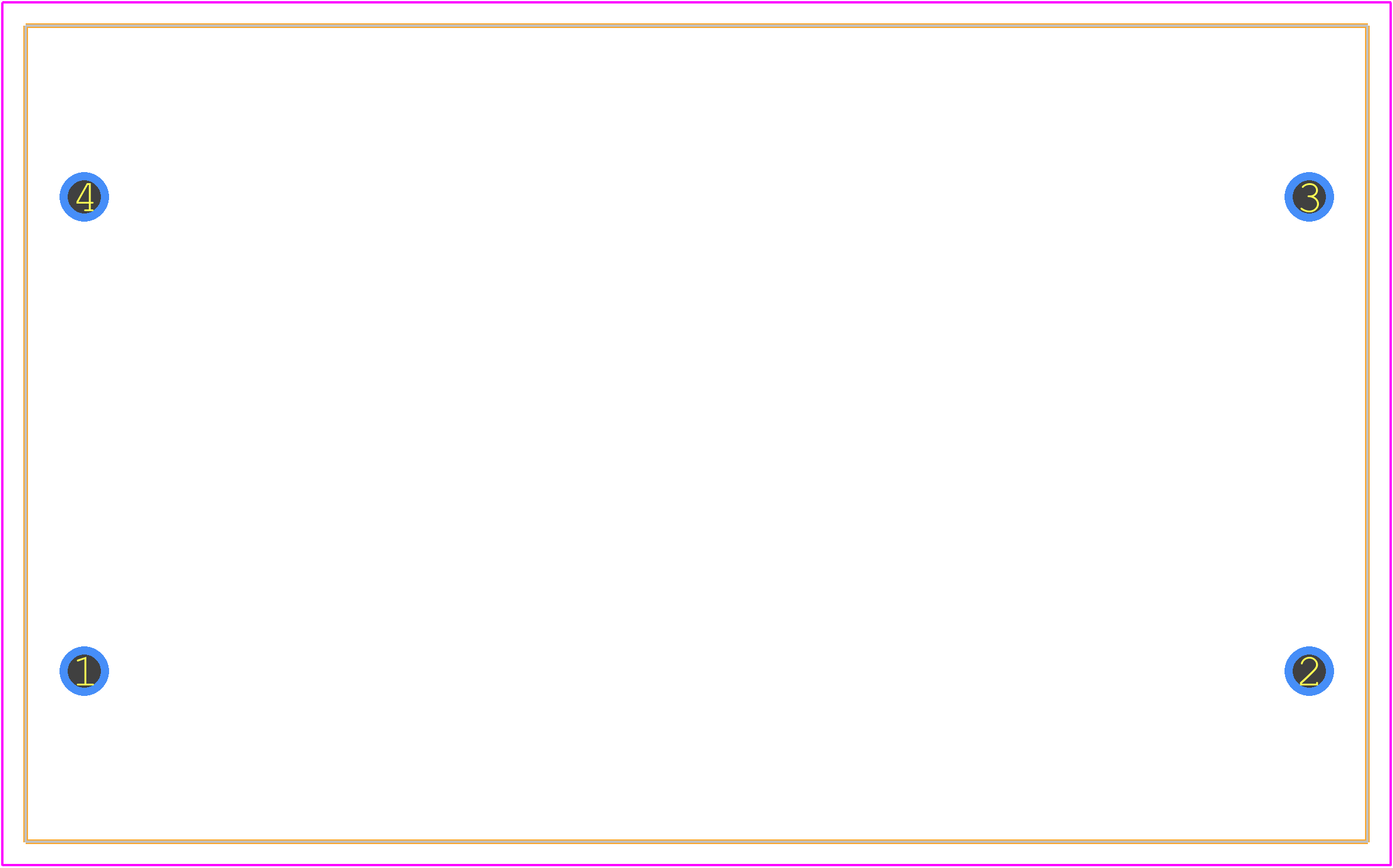

B32778P6506K000 - TDK PCB footprint - Other - Other - B32778P6506K000-2
click to zoom
3D Models
B32778P6506K000 - TDK - 3D model - Other - B32778P6506K000-2
click to zoom

B32778P6506K000 Details

  • Manufacturer Part Number:

    B32778P6506K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    50 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    630 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

B32778P6506K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B32778P6506K000 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, B32778P6506K000 is designed for high-frequency applications, with a self-resonant frequency of 100 MHz and a low equivalent series resistance (ESR) of 30 mΩ.
  • While B32778P6506K000 is designed to operate in a wide range of temperatures, it's not recommended for use in humid environments. The capacitor is not moisture-resistant, and exposure to high humidity may affect its performance and lifespan.
  • The maximum ripple current rating for B32778P6506K000 is 1.5 Arms at 100 kHz, with a maximum operating temperature of 125°C.
  • Yes, B32778P6506K000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
