B32778P8276K000 - TDK

Description: Metallized Polypropylene Capacitors (MKP/MFP), 27uF, 840V DC, 35mm(W) x 50mm(H) x 57.5mm(L)

Download B32778P8276K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B32778P8276K000 - TDK - PCB symbol
click to zoom
PCB Footprints

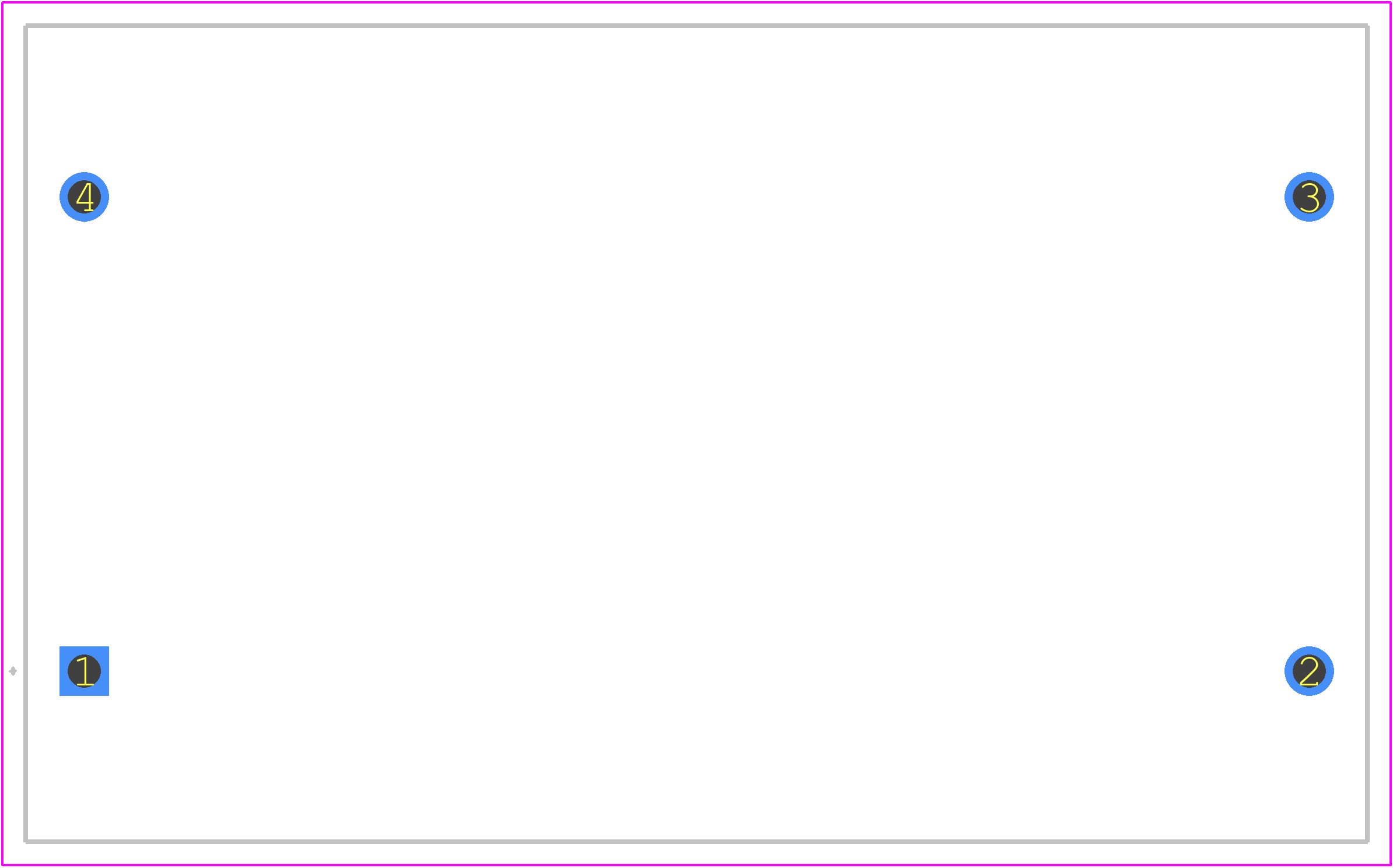

B32778P8276K000 - TDK PCB footprint - Other - Other - B32778P8276K000
click to zoom
3D Models
B32778P8276K000 - TDK - 3D model - Other - B32778P8276K000
click to zoom

B32778P8276K000 Details

  • Manufacturer Part Number:

    B32778P8276K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.46

  • Capacitance:

    27 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    50 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    840 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

B32778P8276K000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the B32778P8276K000 is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive and industrial systems.
  • The ESR of the B32778P8276K000 is relatively low, which means it can handle high-frequency switching and reduce energy losses, making it suitable for power supply and filtering applications.
  • Yes, the B32778P8276K000 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 70%.
