The recommended land pattern for the B340-13-F is a rectangular pad with a size of 1.3mm x 0.8mm, with a 0.5mm diameter hole in the center for the pin. The land pattern should be designed to accommodate the device's pin layout and ensure good solderability.
To handle thermal considerations for the B340-13-F, ensure good thermal conduction by using a thermal pad or a heat sink, and follow the recommended PCB layout guidelines. The device's thermal resistance (RθJA) is 125°C/W, and the maximum operating temperature is 150°C.
The B340-13-F has an integrated ESD protection circuit that can withstand electrostatic discharges up to 2kV according to the Human Body Model (HBM) and 150V according to the Machine Model (MM). However, it's still recommended to follow proper ESD handling procedures during assembly and handling.
Yes, the B340-13-F is suitable for high-reliability applications. It's manufactured using a robust process, and the device is qualified according to AEC-Q101 standards. However, it's essential to follow the recommended operating conditions, storage, and handling guidelines to ensure the device's reliability.
The recommended soldering profile for the B340-13-F is a reflow soldering process with a peak temperature of 260°C, a dwell time above 217°C of 20-40 seconds, and a cooling rate of 4°C/s. It's essential to follow the recommended soldering profile to ensure good solder joint reliability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
B340-13-F Overview

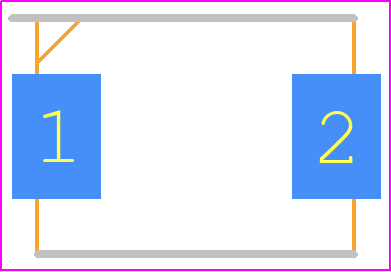

Use the download button to access the B340-13-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B340-,
or try a keyword search, such as Rectifier Diodes
