B39162B4310P810 - RF360

Description: Signal Conditioning GPS/GLONASS/Galileo 1.588GHz PB=34.37MHz

Download B39162B4310P810 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

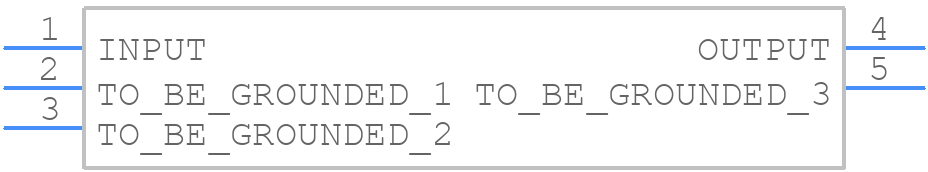

Symbol
B39162B4310P810 - RF360 - PCB symbol
click to zoom
PCB Footprints
B39162B4310P810 - RF360 PCB footprint - Other - Other - B39162B4310P810-1
click to zoom
3D Models
B39162B4310P810 - RF360 - 3D model - Other - B39162B4310P810-1
click to zoom

B39162B4310P810 Details

  • Manufacturer Part Number:

    B39162B4310P810

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT, QCS5P, SMD, 5 PIN

  • Manufacturer:

    RF360 Holdings Singapore Pte Ltd

  • Center or Cutoff Frequency (fo/fc):

    1588.655 MHz

  • Filter Type:

    SAW FILTER

  • Height:

    0.4 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.9 dB

  • JESD-609 Code:

    e4

  • Length:

    1.4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Gold (Au)

  • Width:

    1.1 mm

B39162B4310P810 Frequently Asked Questions (FAQs)

  • The recommended land pattern can be found in the RF360 Holdings Singapore Pte Ltd's application note or can be obtained by contacting their technical support team.
  • Proper thermal management can be achieved by following the recommended PCB layout, using thermal vias, and ensuring good airflow around the component. Consult the datasheet and application notes for more information.
  • The maximum power handling capability can be found in the datasheet, but it's essential to consider derating factors, such as temperature and frequency, to ensure reliable operation.
  • The B39162B4310P810 may require additional testing and qualification for high-reliability or aerospace applications. Consult with RF360 Holdings Singapore Pte Ltd's technical support team to discuss specific requirements and certifications.
  • Start by consulting the datasheet and application notes, then contact RF360 Holdings Singapore Pte Ltd's technical support team for further assistance. They can provide guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B39162B4310P810 Overview

Use the download button to access the B39162B4310P810 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3916, or try a keyword search, such as SAW Filters
