- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for B39162B8813P810
- Part Number B39162B8813P810
- Manufacturer TDK
- Pin Count 5
- Part Category Filter
- Package Category Other
- Footprint Name Other - B39162B8813P810-2
- Released Date Nov 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
B39162B8813P810 Details
-
Manufacturer Part Number:
B39162B8813P810
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
ROHS COMPLIANT, SMD, 5 PIN
-
Manufacturer:
TDK Corporation
-
Center or Cutoff Frequency (fo/fc):
1582.47 MHz
-
Filter Type:
SAW FILTER
-
Height:
0.45 mm
-
Input Impedance:
50 OHM
-
Insertion Loss-Max:
1.9 dB
-
JESD-609 Code:
e4
B39162B8813P810 Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for B39162B8813P810 is 260°C (500°F) for a maximum of 10 seconds.
-
Yes, the B39162B8813P810 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The ESR of the B39162B8813P810 capacitor is 10 mohm (max) at 100 kHz and 20°C.
-
Yes, the B39162B8813P810 capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 30 G (sinusoidal vibration).
-
The MSL of the B39162B8813P810 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering.
Trust Checks
Expert Contribution
System Verified
Community Approved
B39162B8813P810 Overview

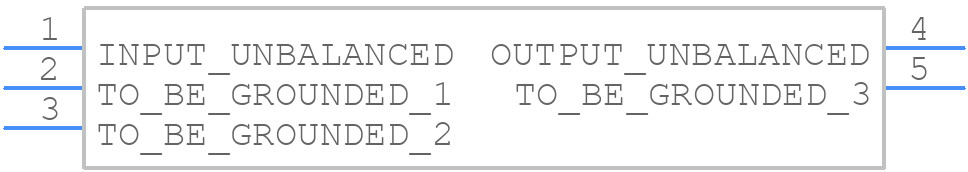

Use the download button to access the B39162B8813P810 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B3916,
or try a keyword search, such as SAW Filters
