B5743-226-M-L-3 - Harwin

Description: Datamate L-Tek: 13+13 Pos Plug DIL Right-Angle 3mm THT Connector Latches Gold (BS)

Download B5743-226-M-L-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

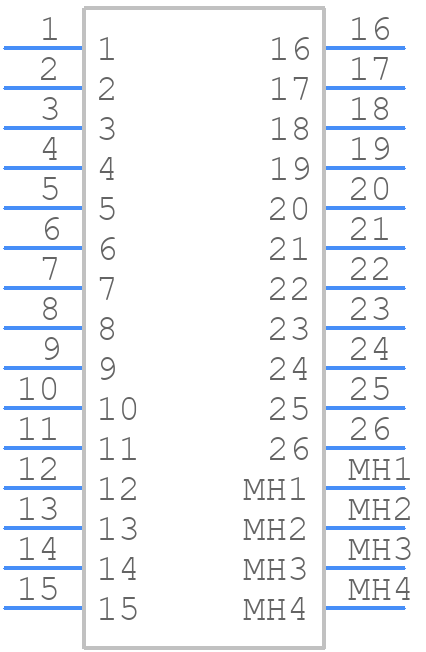

B5743-226-M-L-3 - Harwin - PCB symbol
click to zoom
PCB Footprints

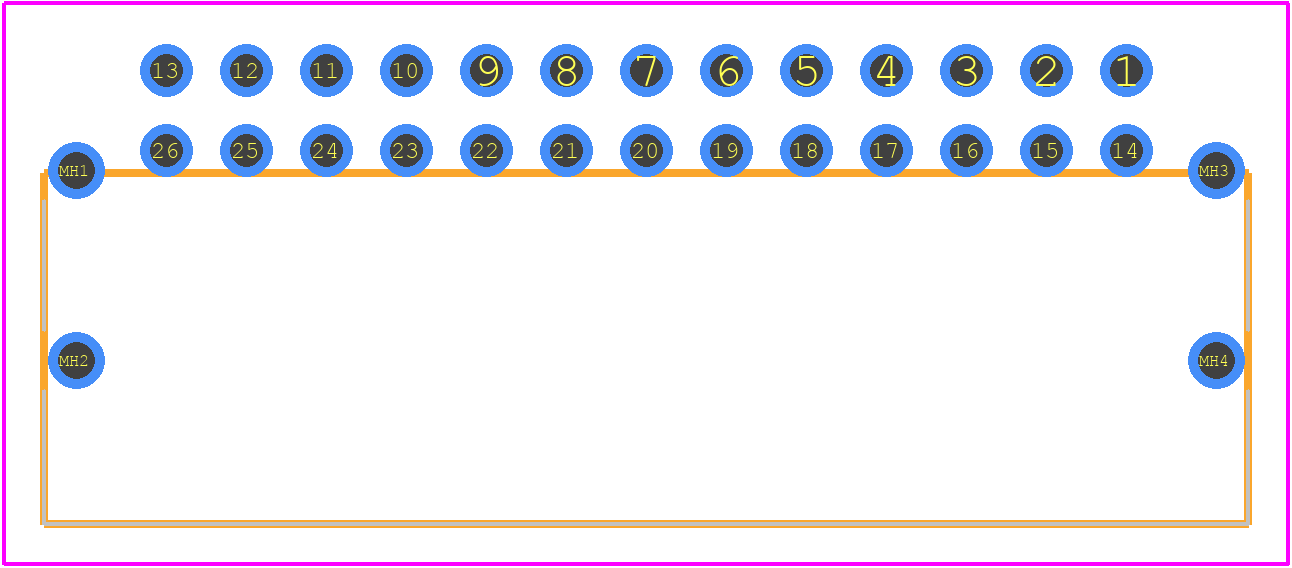

B5743-226-M-L-3 - Harwin PCB footprint - Other - Other - B5743-226-M-L-3-20
click to zoom
3D Models
B5743-226-M-L-3 - Harwin - 3D model - Other - B5743-226-M-L-3-20
click to zoom

B5743-226-M-L-3 Details

  • Manufacturer Part Number:

    B5743-226-M-L-3

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Additional Feature:

    LATCHED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

B5743-226-M-L-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the B5743-226-M-L-3 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • The operating temperature range of the B5743-226-M-L-3 connector is -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
  • Yes, the B5743-226-M-L-3 connector is compatible with lead-free soldering processes, with a solderability temperature of 260°C.
  • The mating cycle life of the B5743-226-M-L-3 connector is 500 cycles, making it suitable for applications that require frequent mating and unmating.
