B58033I5206M001 - TDK

Description: Specialty Ceramic Capacitors Ceralink SolderPin (SP) 20uF 500volts

Download B58033I5206M001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

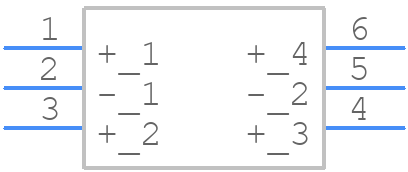

B58033I5206M001 - TDK - PCB symbol
click to zoom
PCB Footprints

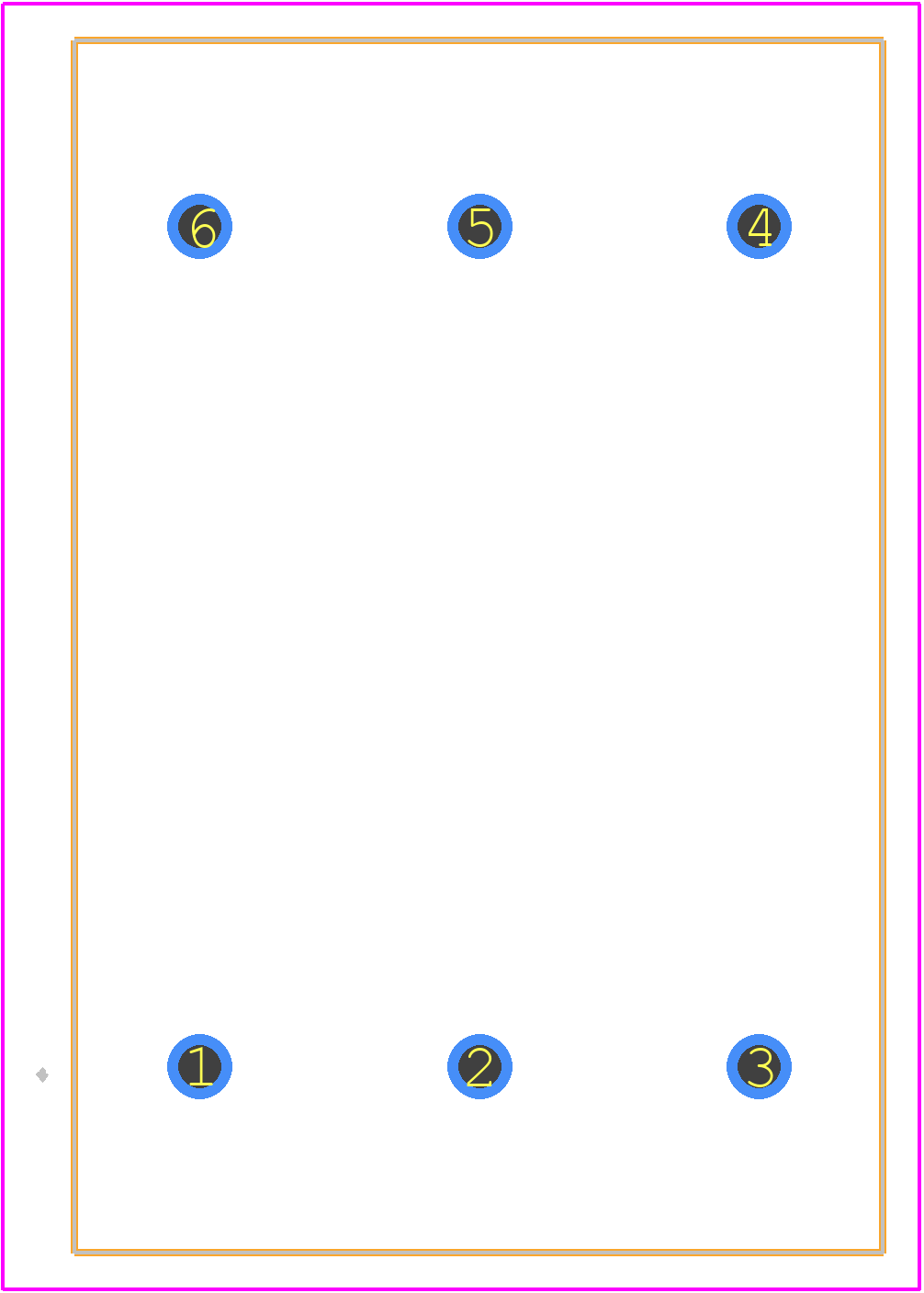

B58033I5206M001 - TDK PCB footprint - Other - Other - B58033I5206M001-1
click to zoom
3D Models
B58033I5206M001 - TDK - 3D model - Other - B58033I5206M001-1
click to zoom

B58033I5206M001 Details

  • Manufacturer Part Number:

    B58033I5206M001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Capacitance:

    20 µF

  • Capacitor Type:

    ARRAY/NETWORK CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    11.5 mm

  • JESD-609 Code:

    e4

  • Length:

    33 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Network Type:

    BUSSED C NETWORK

  • Number of Elements:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    TUBE

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    AEC-Q200

  • Seated Height-Max:

    11.5 mm

  • Surface Mount:

    NO

  • Terminal Finish:

    SILVER

  • Terminal Pitch:

    7.62 mm

  • Terminal Shape:

    FLAT

  • Width:

    22 mm

B58033I5206M001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B58033I5206M001 can be found in the TDK Corporation's recommended footprint document or by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper soldering and component reliability.
  • To prevent damage, handle the B58033I5206M001 component by the edges, avoid touching the pins or components, and use an anti-static wrist strap or mat. Also, ensure the assembly area is clean and free from debris.
  • The maximum storage temperature for B58033I5206M001 is typically 40°C (104°F) according to TDK Corporation's storage and handling guidelines. Exceeding this temperature may affect the component's reliability and performance.
  • The B58033I5206M001 is designed to withstand certain levels of vibration, but it's essential to consult TDK Corporation's vibration testing and reliability data to ensure the component meets the specific requirements of your application.
  • Follow the recommended soldering profile and guidelines provided by TDK Corporation or industry standards such as IPC-J-STD-020. Ensure the soldering temperature and time are within the specified limits to prevent damage to the component.
