B66232J1112T1 footprint, schematic symbol and 3D model by TDK

Symbol

click to zoom

PCB Footprints

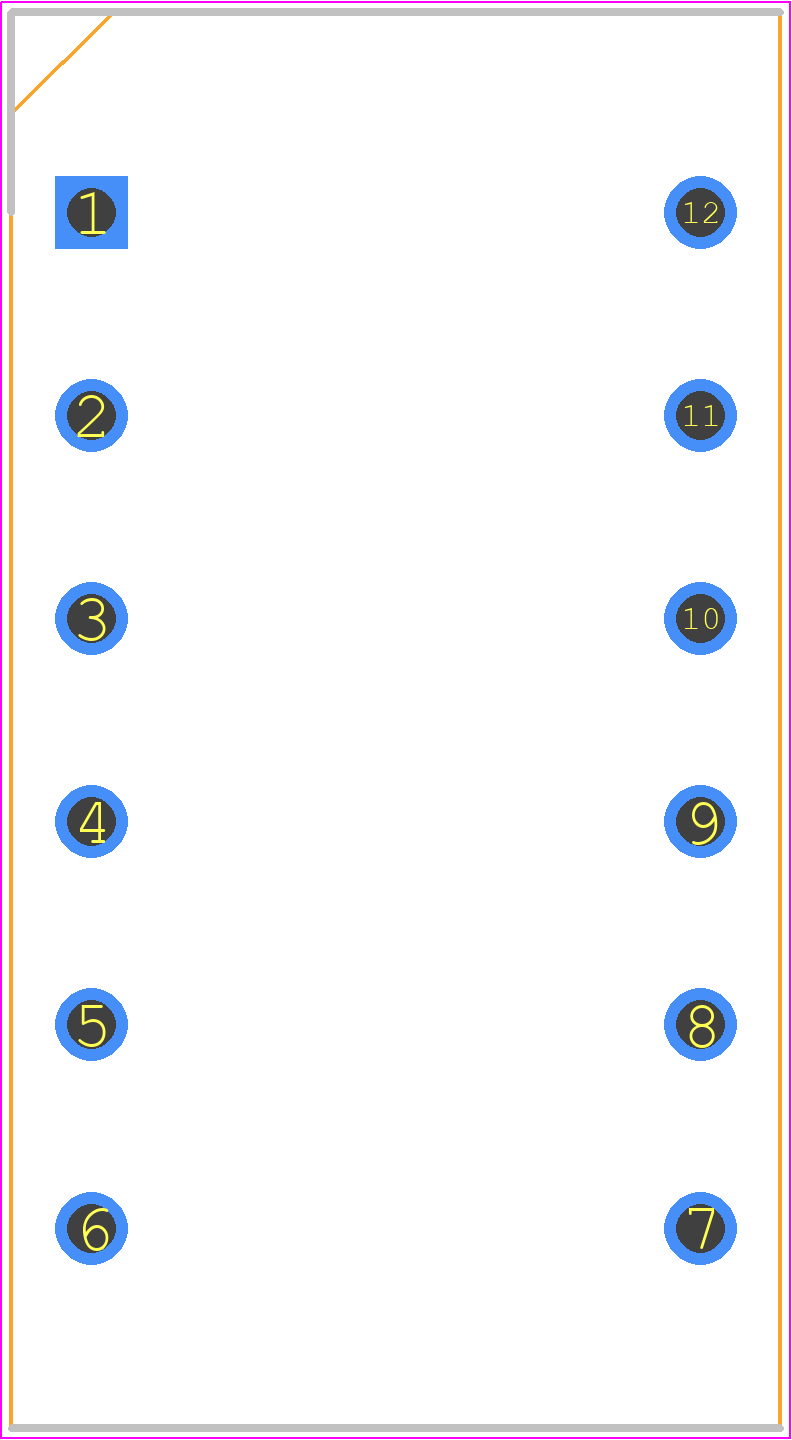

B66232J1112T1 - TDK PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - B66232J1112T1

click to zoom

3D Models

B66232J1112T1 - TDK - 3D model - Dual-In-Line Sockets - B66232J1112T1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B66232J1112T1
Part Number B66232J1112T1
Manufacturer TDK
Pin Count 12
Part Category Undefined or Miscellaneous
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - B66232J1112T1
Released Date Mar 4, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

B66232J1112T1 Details

Manufacturer Part Number:
B66232J1112T1
Manufacturer:
TDK Corporation

Trust Checks

Expert Contribution

System Verified

Community Approved

B66232J1112T1 Overview

Use the download button to access the B66232J1112T1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B6623, or try a keyword search, such as Silicon Controlled Rectifiers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
