B6P-SHF-1AA (LF)(SN) footprint, schematic symbol and 3D model by JAE

Symbol

click to zoom

PCB Footprints

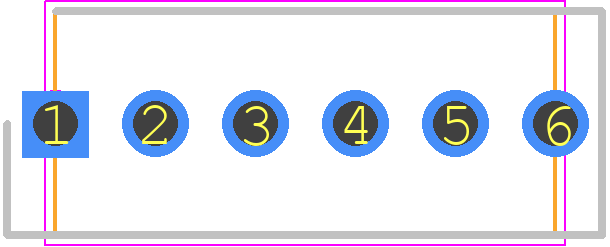

B6P-SHF-1AA (LF)(SN) - JAE PCB footprint - Header, Vertical - Header, Vertical - B 6P-SHF-1AA

click to zoom

3D Models

B6P-SHF-1AA (LF)(SN) - JAE - 3D model - Header, Vertical - B 6P-SHF-1AA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B6P-SHF-1AA (LF)(SN)
Part Number B6P-SHF-1AA (LF)(SN)
Manufacturer JAE
Pin Count 6
Part Category Connector
Package Category Header, Vertical
Footprint Name Header, Vertical - B 6P-SHF-1AA
Released Date Jan 22, 2016
Last Modified Date Jul 16, 2023 9:06 PM UTC
Pinout / Pin List Click Here (Member Only)

B6P-SHF-1AA (LF)(SN) Details

Manufacturer Part Number:
B6P-SHF-1AA (LF)(SN)
Manufacturer:
JAE Electronics

Trust Checks

Community Provided

System Verified

Community Approved

B6P-SHF-1AA (LF)(SN) Overview

Use the download button to access the B6P-SHF-1AA (LF)(SN) schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B6P-S, or try a keyword search, such as Headers and Edge Type Connectors
