According to TDK's general guidelines, the recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's always best to consult the specific soldering profile recommended by TDK for this particular component.
While the datasheet provides some temperature-related information, it's essential to understand that the capacitor's capacitance, ESR, and other parameters may vary significantly over the operating temperature range. TDK provides more detailed temperature characteristics in their application notes or upon request.
The B72210S0461K101 has an MSL rating of 2 or 3, depending on the packaging and handling procedures. This means that the component can be exposed to a certain level of moisture before soldering, but it's crucial to follow TDK's recommended storage and handling guidelines to prevent damage.
While the datasheet doesn't explicitly mention vibration or shock resistance, TDK's ceramic capacitors are generally designed to withstand moderate levels of vibration and shock. However, it's recommended to consult TDK's application notes or contact their support team to determine the capacitor's suitability for your specific application.
TDK's ceramic capacitors are known for their high reliability and long lifespan. The B72210S0461K101 is expected to have a lifespan of 1,000 to 5,000 hours at 85°C (185°F) with a failure rate of <1% per 1,000 hours. However, the actual lifespan may vary depending on the application, operating conditions, and quality of the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B72210S0461K101 Overview

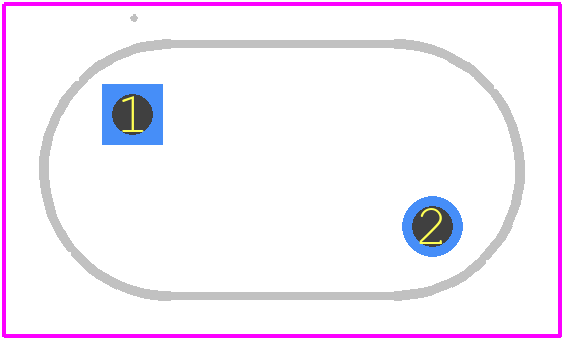

Use the download button to access the B72210S0461K101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7221,
or try a keyword search, such as Varistor
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
