B72225S4321K101 - TDK

Description: Leaded Disk Varistors, Max. Operating Voltage [AC]=320Vrms, Max. Surge Current Imax(8/20?s,1time)=20000A

Download B72225S4321K101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B72225S4321K101 - TDK - PCB symbol
click to zoom
PCB Footprints

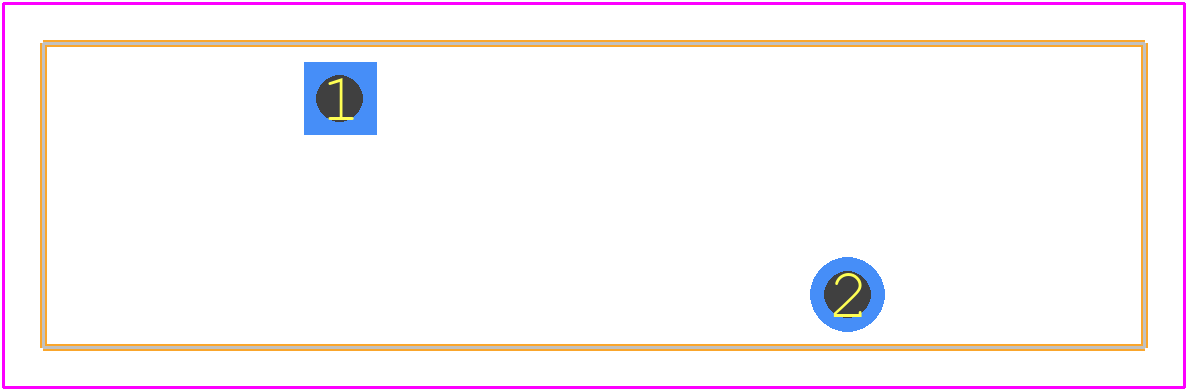

B72225S4321K101 - TDK PCB footprint - Other - Other - B72225S4321K101-5
click to zoom
3D Models
B72225S4321K101 - TDK - 3D model - Other - B72225S4321K101-5
click to zoom

B72225S4321K101 Details

  • Manufacturer Part Number:

    B72225S4321K101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.75

  • Circuit RMS Voltage-Max:

    320 V

  • Energy Absorbing Capacity-Max:

    445 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    31 mm

  • Package Length:

    27.5 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    7.6 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1 W

  • Reference Standard:

    CSA; IEC; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE FILM

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    420 V

B72225S4321K101 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B72225S4321K101 is between 260°C to 280°C, with a maximum temperature of 300°C for a short duration (less than 10 seconds).
  • Yes, the B72225S4321K101 is designed to withstand high-vibration environments. It has a vibration resistance of 10Hz to 2000Hz, 10G acceleration, and a shock resistance of 100G, 6ms duration.
  • Yes, the B72225S4321K101 is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and high vibration resistance.
  • The ESR of B72225S4321K101 is 30mΩ maximum at 100kHz, 20°C.
  • Yes, the B72225S4321K101 has a maximum operating temperature of 125°C, making it suitable for high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B72225S4321K101 Overview

Use the download button to access the B72225S4321K101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7222, or try a keyword search, such as Varistor
