B72660M0251K072 - TDK

Description: SMD Disk Varistors, Max. Operating Voltage [AC]=250Vrms, Max. Surge Current Imax(8/20μs,1time)=1200A

Download B72660M0251K072 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B72660M0251K072 - TDK - PCB symbol
click to zoom
PCB Footprints

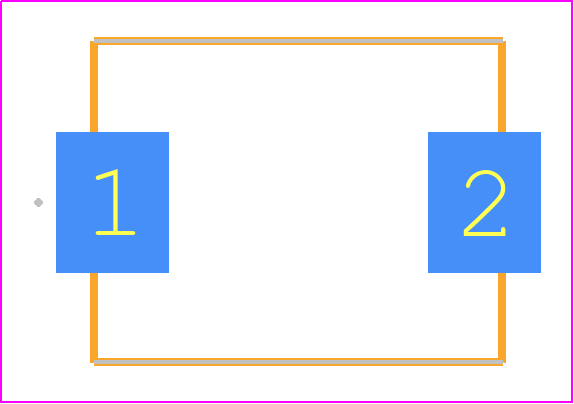

B72660M0251K072 - TDK PCB footprint - Other - Other - CU4032
click to zoom
3D Models
B72660M0251K072 - TDK - 3D model - Other - CU4032
click to zoom

B72660M0251K072 Details

  • Manufacturer Part Number:

    B72660M0251K072

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.47

  • Circuit RMS Voltage-Max:

    250 V

  • Energy Absorbing Capacity-Max:

    19 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    4.5 mm

  • Package Length:

    10.2 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    8 mm

  • Packing Method:

    TR, BLISTER, 13 INCH

  • Rated Power Dissipation (P):

    0.25 W

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CSA; IEC; UL

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    YES

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    J BEND

  • Working Voltage:

    320 V
