The recommended land pattern for the B78476A8245A003 can be found in the TDK Corporation's application note or on their website. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 1.5mm x 1.5mm thermal pad in the center.
The B78476A8245A003 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal relief, such as a thermal pad or via, to dissipate heat. Additionally, consider the PCB's thermal conductivity and the inductor's proximity to heat sources.
The self-resonant frequency (SRF) of the B78476A8245A003 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the SRF is around 100-200 MHz for this type of inductor.
While the B78476A8245A003 is suitable for high-frequency applications, its performance may degrade above 10 MHz due to the inductor's internal capacitance and resistance. It's essential to evaluate the inductor's impedance characteristics and consider alternative options if high-frequency performance is critical.
To ensure reliability, follow proper PCB design and layout guidelines, such as avoiding vias under the inductor, using a sufficient soldering fillet, and providing adequate clearance from other components. Additionally, consider the inductor's rated current, voltage, and temperature to prevent overheating, saturation, or other forms of failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B78476A8245A003 Overview

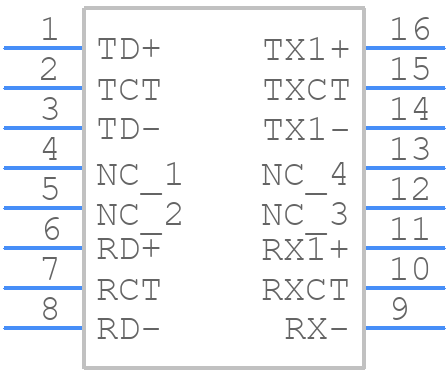

Use the download button to access the B78476A8245A003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7847,
or try a keyword search, such as Pulse/Datacom Transformers
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
