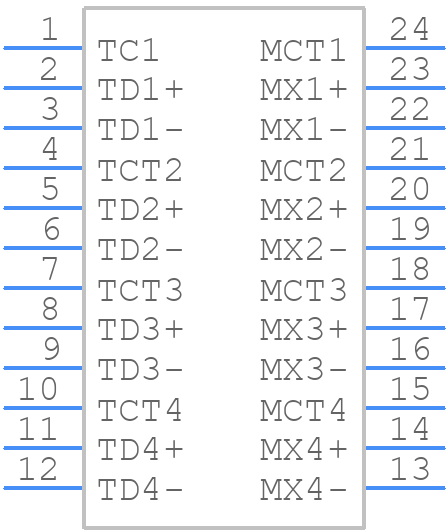

B78476A8251A003 - TDK

B78476A8251A003 Frequently Asked Questions (FAQs)

• What is the recommended land pattern for the B78476A8251A003?
  The recommended land pattern for the B78476A8251A003 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
• How do I handle the B78476A8251A003 inductor during PCB assembly?
  Handle the B78476A8251A003 inductor by the body, avoiding touching the leads or the core. Use anti-static wrist straps, mats, or other ESD protection methods to prevent damage from electrostatic discharge. Ensure the component is properly seated and aligned during PCB assembly.
• What is the maximum operating temperature range for the B78476A8251A003?
  The maximum operating temperature range for the B78476A8251A003 is -40°C to +125°C. However, the component's performance and lifespan may degrade if operated at extreme temperatures. It's essential to consider the operating temperature range in your design to ensure reliable performance.
• Can I use the B78476A8251A003 inductor in a high-vibration environment?
  The B78476A8251A003 inductor is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you should consider using a more robust inductor or taking additional measures to secure the component, such as using a vibration-dampening material or a more robust PCB design.
• How do I determine the saturation current of the B78476A8251A003 inductor?
  The saturation current of the B78476A8251A003 inductor can be determined by consulting the inductor's datasheet or by performing a saturation current test. The test involves applying a gradually increasing current to the inductor while measuring the inductance. The saturation current is the point at which the inductance begins to decrease significantly.
