B81123C1222M189 - TDK

Description: Epcos B81123 2.2nF Polypropylene Film Capacitor 500 V ac ±20%, Through Hole

Download B81123C1222M189 Model
Schematic symbol is unavailable for download
PCB footprint is unavailable for download
3D model is unavailable for download
PCB Footprints

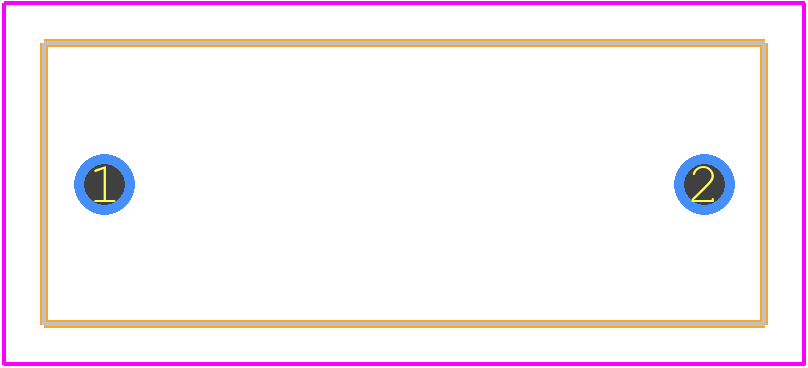

B81123C1222M189 - TDK PCB footprint - Other - Other - B81123C1222M189-1
click to zoom
3D Models
B81123C1222M189 - TDK  - 3D model - Other - B81123C1222M189-1
click to zoom

B81123C1222M189 Details

  • Manufacturer Part Number:


  • Rohs Code:


  • Part Life Cycle Code:


  • Package Description:


  • Reach Compliance Code:


  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:


  • Capacitance:

    0.0022 µF

  • Capacitor Type:


  • Dielectric Material:


  • Height:

    12.5 mm

  • JESD-609 Code:


  • Length:

    18 mm

  • Mounting Feature:


  • Negative Tolerance:


  • Number of Terminals:


  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:


  • Package Style:


  • Packing Method:

    TR, 20 INCH

  • Positive Tolerance:


  • Rated (AC) Voltage (URac):

    750 V

  • Rated (DC) Voltage (URdc):

    3000 V

  • Reference Standard:

    AEC-Q200, CSA, CUL, ENEC, IEC60384-14, UL

  • Surface Mount:


  • Terminal Finish:


  • Terminal Pitch:

    15 mm

  • Terminal Shape:


  • Width:

    7 mm
