The recommended land pattern for B82453C0203A000 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, handle the B82453C0203A000 by the edges, avoiding touching the component's surface or pins. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Also, avoid bending or flexing the component during assembly.
The maximum storage temperature for B82453C0203A000 is typically 30°C (86°F) with a relative humidity of 60% or less. Storage above this temperature can affect the component's reliability and lifespan.
While B82453C0203A000 is designed to be robust, it's essential to evaluate the component's suitability for high-vibration environments. TDK Corporation provides vibration testing data, but it's recommended to consult with their technical support or perform custom testing to ensure the component meets the specific application requirements.
The lead time for B82453C0203A000 may vary depending on the region, quantity, and availability. It's recommended to check with authorized distributors or TDK Corporation's sales representatives for the latest lead time information. If there are any supply chain concerns, TDK Corporation may offer alternative components or suggest equivalent parts from their product portfolio.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82453C0203A000 Overview

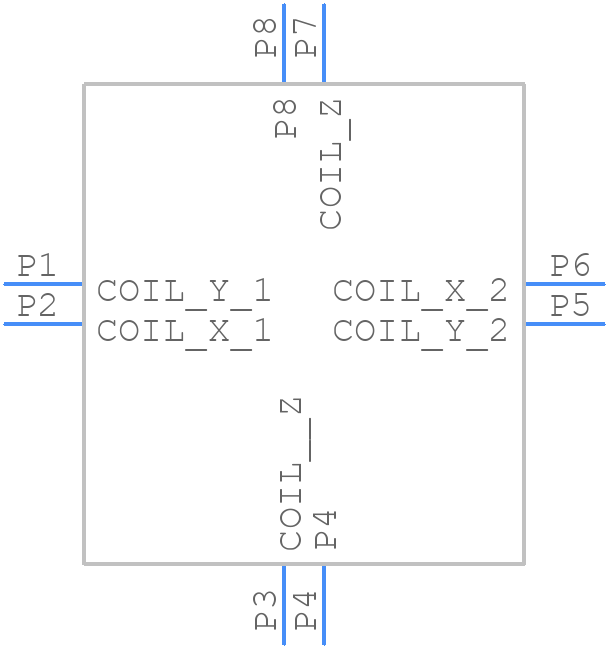

Use the download button to access the B82453C0203A000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8245,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
