TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper performance and minimize parasitic effects.
While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under specific switching conditions. Additionally, engineers can perform their own simulations and testing to validate the inductor's performance.
The SRF is typically not specified in the datasheet, but it can be estimated using the inductor's L and C values. The SRF can affect circuit performance by causing unwanted resonances and oscillations. Engineers should consider the SRF when designing their circuits and take measures to mitigate its impact.
The core material used in the B82453C0270A000 is a ferrite-based material. Ferrite cores are known for their high saturation points, low core losses, and good temperature stability. However, they can be prone to core losses and saturation under high-current and high-frequency conditions. Engineers should consider the core material's characteristics when designing their circuits and selecting the inductor.
The datasheet provides some information on the inductor's thermal characteristics, but engineers should also consider the PCB layout, airflow, and heat sinking to ensure proper thermal management. Excessive temperatures can affect the inductor's performance, reliability, and lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82453C0270A000 Overview

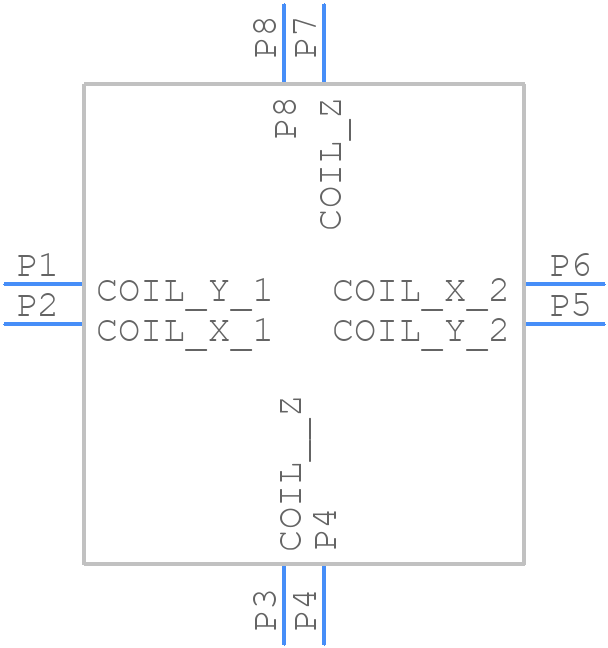

Use the download button to access the B82453C0270A000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8245,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
