The recommended land pattern for the B82464G4224M000 can be found in the TDK Corporation's application note or footprint library. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, handle the B82464G4224M000 by the edges, avoiding touching the electrical contacts or the ceramic body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending, flexing, or applying excessive force to the component during assembly.
The maximum allowable voltage derating for the B82464G4224M000 depends on the specific application and operating conditions. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent premature failure. Consult with TDK Corporation's application engineers or refer to the component's reliability handbook for more information.
The equivalent series resistance (ESR) of the B82464G4224M000 can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a vector network analyzer. The ESR value can also be estimated using the component's datasheet parameters, such as the capacitance and the dissipation factor.
The B82464G4224M000 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as heat sinks, thermal interfaces, or air flow, to keep the component's temperature below the maximum rating. Consult with TDK Corporation's thermal management guidelines or application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82464G4224M000 Overview

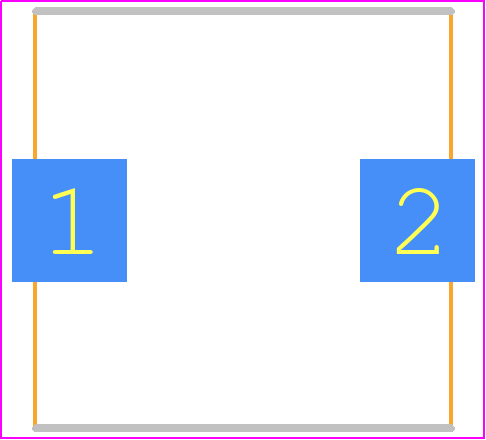

Use the download button to access the B82464G4224M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8246,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
