B82477R4154M100 - TDK

Description: Epcos B82477-R4 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 150 μH ±20% 1.8A Idc

Download B82477R4154M100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82477R4154M100 - TDK - PCB symbol
click to zoom
PCB Footprints

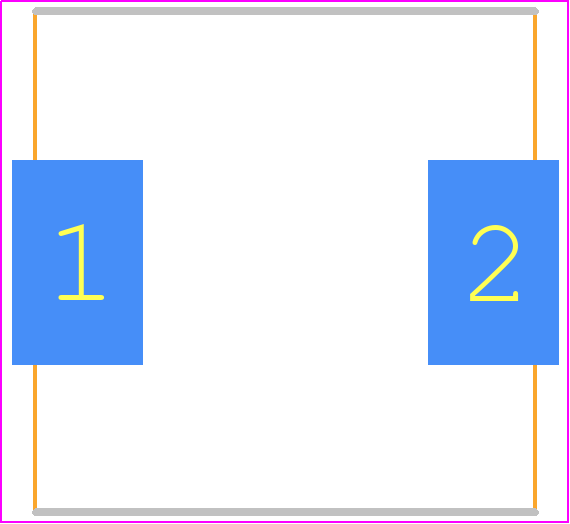

B82477R4154M100 - TDK PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - B82477R4
click to zoom
3D Models
B82477R4154M100 - TDK - 3D model - Inductors Precision Moulded - B82477R4
click to zoom

B82477R4154M100 Details

  • Manufacturer Part Number:

    B82477R4154M100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.175 Ω

  • Inductance-Nom (L):

    150 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    8.5 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, Blister, 13 Inch

  • Rated Current-Max:

    1.9 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%
