B82559A1042A025 - TDK

Description: Epcos B82559A Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 440 nH ±7% Wire-Wound/002

Download B82559A1042A025 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82559A1042A025 - TDK - PCB symbol
click to zoom
PCB Footprints

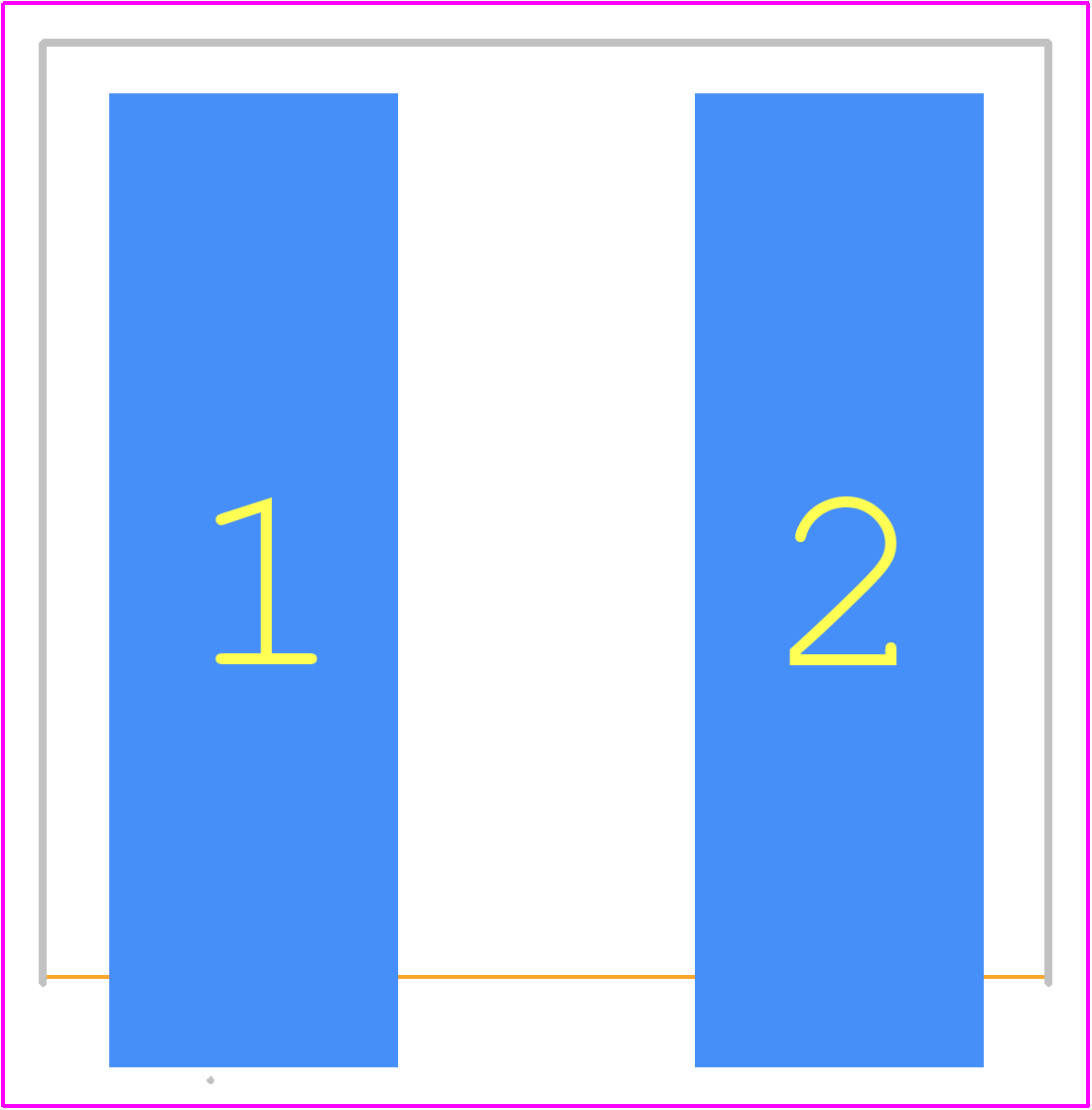

B82559A1042A025 - TDK PCB footprint - Other - Other - B82559A1042A025-3
click to zoom
3D Models
B82559A1042A025 - TDK - 3D model - Other - B82559A1042A025-3
click to zoom

B82559A1042A025 Details

  • Manufacturer Part Number:

    B82559A1042A025

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.4

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00025 Ω

  • Inductance-Nom (L):

    0.44 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    9.6 mm

  • Package Length:

    25.3 mm

  • Package Style:

    SMT

  • Package Width:

    23.5 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    71 A

  • Self Resonance Frequency:

    2 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    7%

B82559A1042A025 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a ground plane underneath the inductor to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 1.5 mm clearance around the inductor is also recommended.
  • The B82559A1042A025 is designed to handle high-frequency switching up to 2 MHz. However, it's essential to consider the skin effect, proximity effect, and core losses when operating at high frequencies. TDK provides a Spice model and simulation tools to help engineers optimize their design.
  • The maximum allowable voltage across the inductor is 25 V, as specified in the datasheet. Exceeding this voltage may lead to reduced reliability, increased core losses, or even inductor failure.
  • The inductor's performance is affected by temperature, with a maximum operating temperature of 125°C. As temperature increases, the inductor's inductance and Q-factor may decrease, while core losses may increase. TDK provides temperature derating curves to help engineers design for temperature-related effects.
  • TDK recommends a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. Hand soldering is not recommended due to the risk of overheating the inductor.
