B82559A2102A019 - TDK

B82559A2102A019 Details

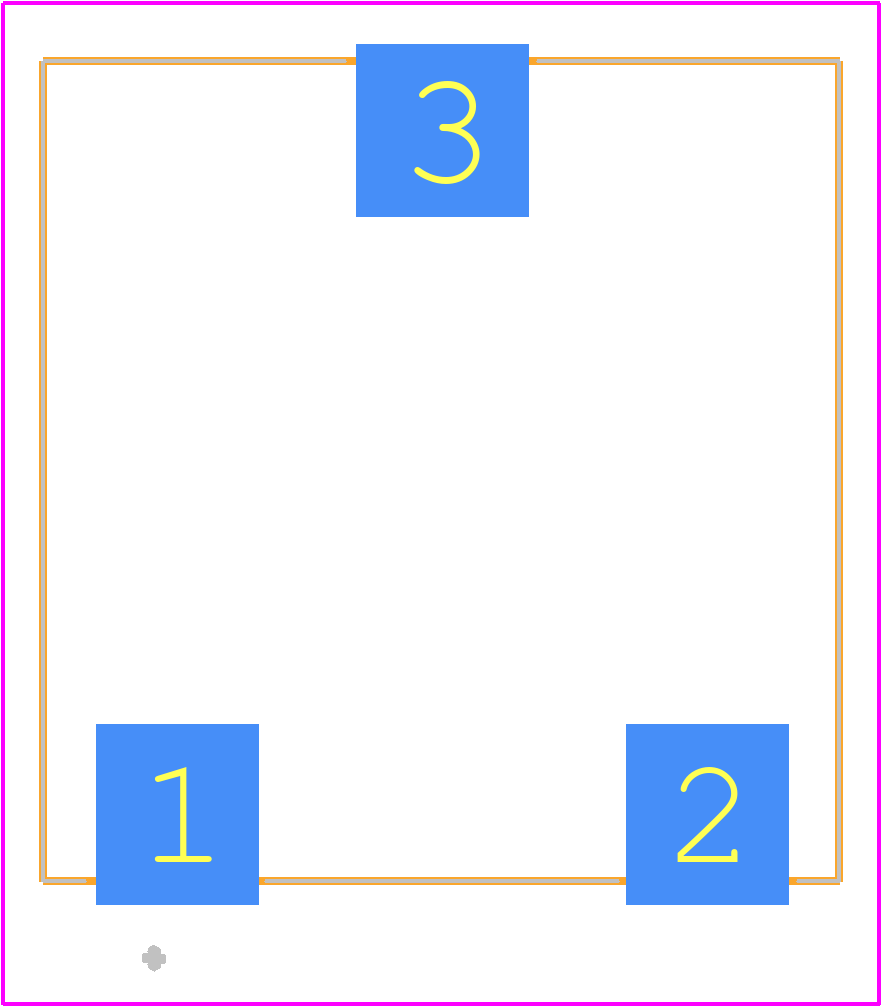

• Manufacturer Part Number:

  B82559A2102A019

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  CHIP, 8178

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Manufacturer:

  TDK Corporation

• YTEOL:

  0

• Case/Size Code:

  8077

• Construction:

  Rectangular

• Core Material:

  FERRITE

• DC Resistance:

  0.0012 Ω

• Inductance-Nom (L):

  1 µH

• Inductor Application:

  DC-DC CONVERTER

• Inductor Type:

  GENERAL PURPOSE INDUCTOR

• JESD-609 Code:

  e3

• Number of Functions:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Height:

  8.35 mm

• Package Length:

  20.5 mm

• Package Style:

  SMT

• Package Width:

  19.9 mm

• Packing Method:

  TR, BLISTER, 13 INCH

• Rated Current-Max:

  43 A

• Reference Standard:

  AEC-Q200

• Self Resonance Frequency:

  2 MHz

• Shape/Size Description:

  RECTANGULAR PACKAGE

• Shielded:

  YES

• Surface Mount:

  YES

• Terminal Finish:

  TIN

• Terminal Placement:

  DUAL IN-LINE

• Terminal Shape:

  WRAPAROUND

• Test Frequency:

  0.1 MHz

• Tolerance:

  10%
