TDK recommends a symmetrical PCB layout with a solid ground plane underneath the inductor to minimize radiation and ensure optimal performance. A minimum of 1.5 mm clearance around the inductor is also recommended.
The B82559A5332A024 has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal pad if the ambient temperature exceeds 85°C. Derate the current rating accordingly based on the temperature coefficient.
The SRF of the B82559A5332A024 is not explicitly stated in the datasheet. However, TDK provides an impedance vs. frequency graph, which can be used to estimate the SRF. Typically, it falls between 10-20 times the maximum operating frequency.
The B82559A5332A024 is designed to withstand moderate vibration. However, for high-vibration environments, consider using a more robust inductor or adding mechanical reinforcement, such as potting or encapsulation, to ensure reliability.
Consider factors such as operating frequency, current rating, inductance value, DC resistance, and physical size. Use TDK's online simulation tools or consult with their application engineers to ensure the B82559A5332A024 meets your specific requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82559A5332A024 Overview

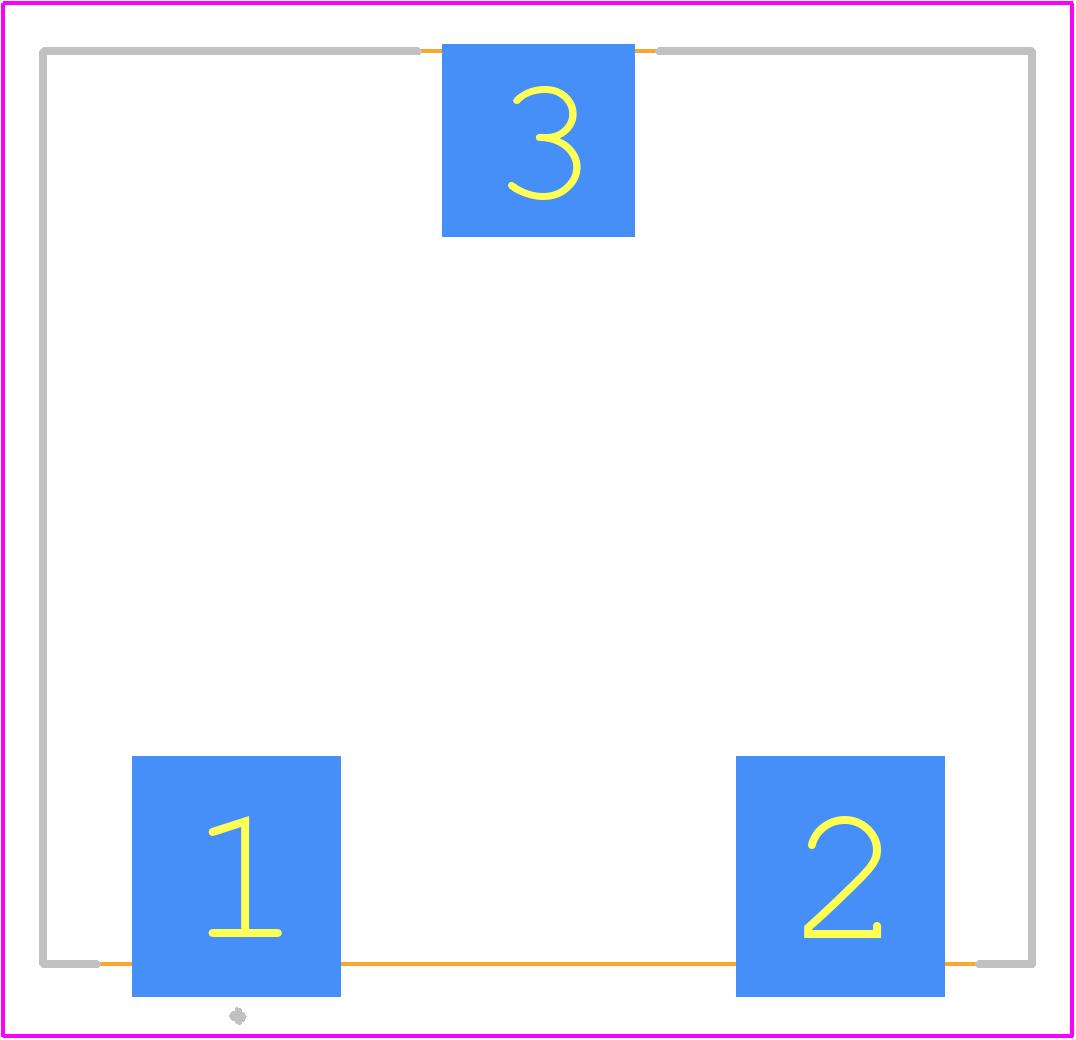

Use the download button to access the B82559A5332A024 schematic symbol, PCB footprint, and 3D model.
