The recommended land pattern for the B82559A7103A025 can be found in the TDK Corporation's application note or footprint library. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 1.5mm diameter hole in the center for the inductor's terminal.
The B82559A7103A025 has a temperature derating curve specified in the datasheet. To handle thermal derating, ensure that the inductor's operating temperature is within the specified range (typically -40°C to +125°C). If the operating temperature exceeds the specified range, reduce the inductor's current rating according to the derating curve to prevent overheating and ensure reliable operation.
The self-resonant frequency (SRF) of the B82559A7103A025 is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Typically, the SRF of this inductor is around 100-200 MHz. For more accurate information, contact TDK Corporation's technical support or refer to their application notes.
The B82559A7103A025 is designed for general-purpose use and has a relatively low self-resonant frequency. While it can be used in high-frequency applications, its performance may degrade above 10-20 MHz. For high-frequency applications, consider using a specialized high-frequency inductor from TDK Corporation or other manufacturers, which are designed to operate at higher frequencies with minimal losses.
To ensure the reliability and longevity of the B82559A7103A025, follow proper storage and handling procedures, avoid excessive mechanical stress, and operate the inductor within its specified ratings (voltage, current, and temperature). Additionally, consider implementing a robust design with adequate margins, using a suitable PCB material, and ensuring good thermal management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82559A7103A025 Overview

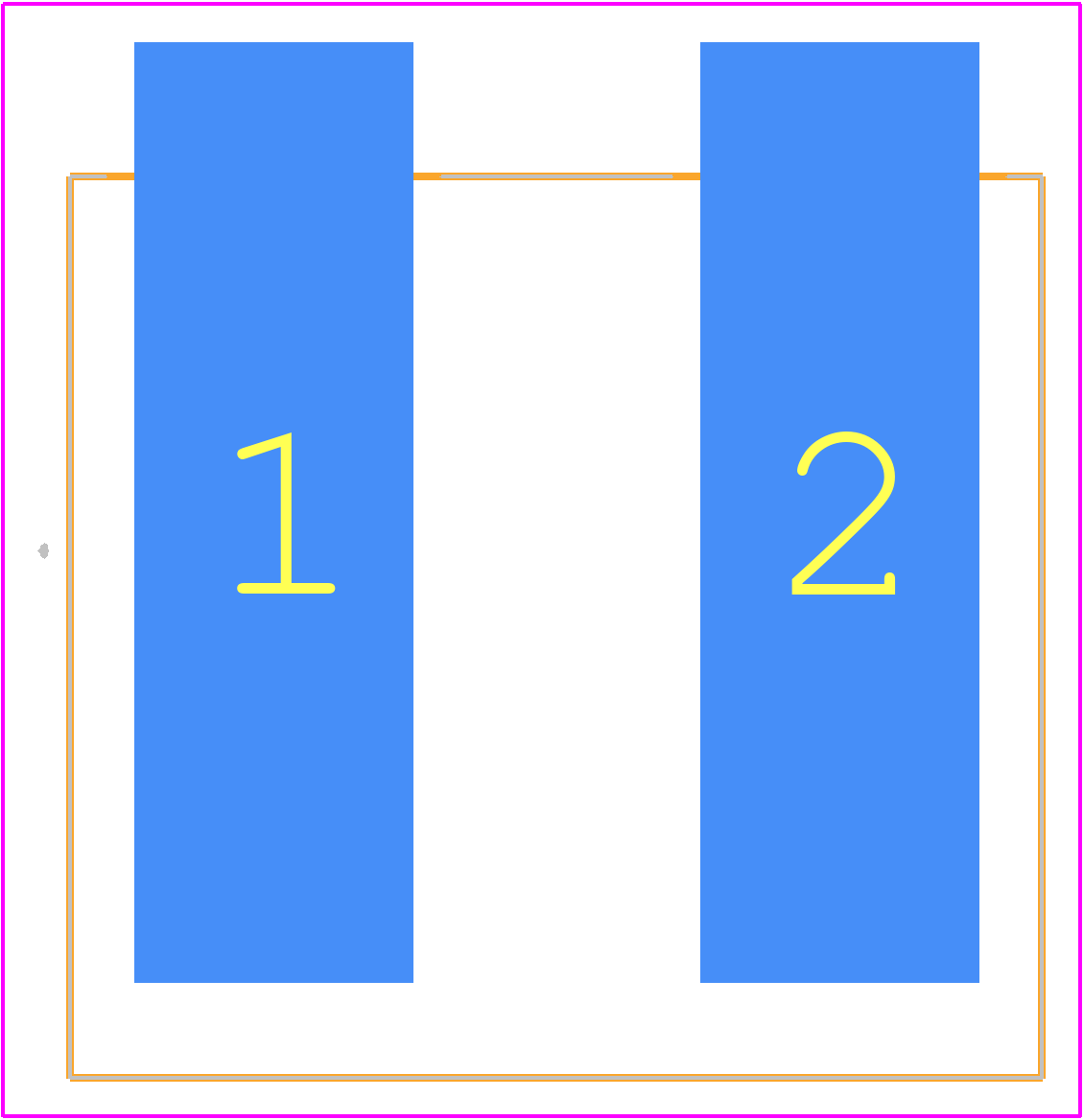

Use the download button to access the B82559A7103A025 schematic symbol, PCB footprint, and 3D model.
