B82559A9153A020 - TDK

Description: Epcos B82559A Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH ±10% 15.3A Idc

Download B82559A9153A020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82559A9153A020 - TDK - PCB symbol
click to zoom

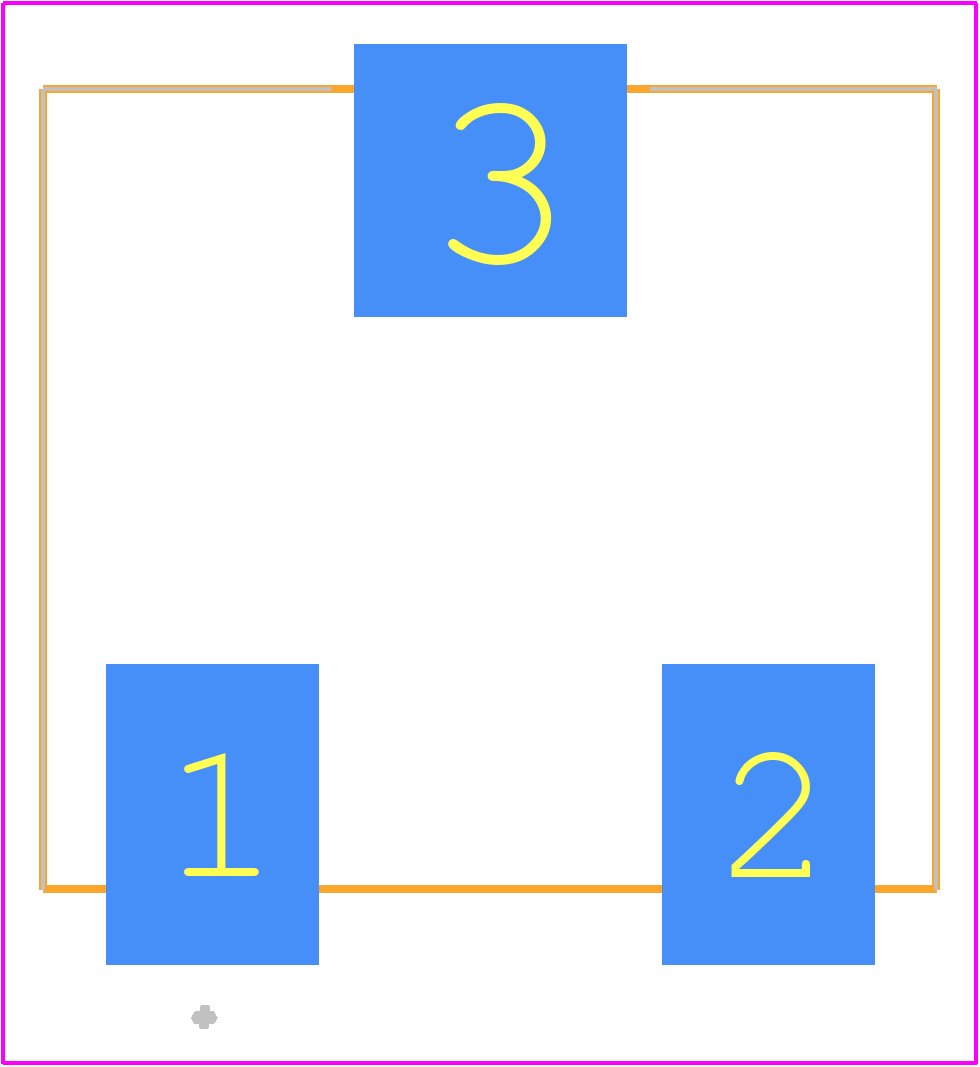

PCB Footprints
B82559A9153A020 - TDK PCB footprint - Other - Other - B82559A9153A020-2
click to zoom
3D Models
B82559A9153A020 - TDK - 3D model - Other - B82559A9153A020-2
click to zoom

B82559A9153A020 Details

  • Manufacturer Part Number:

    B82559A9153A020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Case/Size Code:

    8887

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.00495 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    DC-DC CONVERTER

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    12.1 mm

  • Package Length:

    22.3 mm

  • Package Style:

    SMT

  • Package Width:

    22 mm

  • Packing Method:

    TR, Blister, 13 Inch

  • Rated Current-Max:

    15.3 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    2 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    J BEND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%

B82559A9153A020 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper inductor performance and to minimize parasitic effects.
  • While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes or contact their technical support for more detailed information on the inductor's behavior under specific switching conditions.
  • The SRF is typically not specified in the datasheet, but it can be estimated using the inductor's L and C values. The SRF can affect circuit performance by causing unwanted resonances or oscillations. Engineers should consider the SRF when designing their circuits, especially in high-frequency applications.
  • The core material used in the B82559A9153A020 inductor is a ferrite material, which is suitable for most applications. However, engineers should be aware that ferrite materials can exhibit nonlinear behavior under high-current or high-temperature conditions, which may affect the inductor's performance and reliability.
  • Thermal derating factors are typically provided in the datasheet or in TDK's application notes. Engineers should consider these factors when designing their circuits, as excessive temperatures can reduce the inductor's performance, reliability, and lifespan.
