B82721A2401N020 - TDK

Description: Power Line Chokes, L=39mH Rated current=0.4A, LxWxT:17.9mmx17.3mmx12.6mm

Download B82721A2401N020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82721A2401N020 - TDK - PCB symbol
click to zoom
PCB Footprints

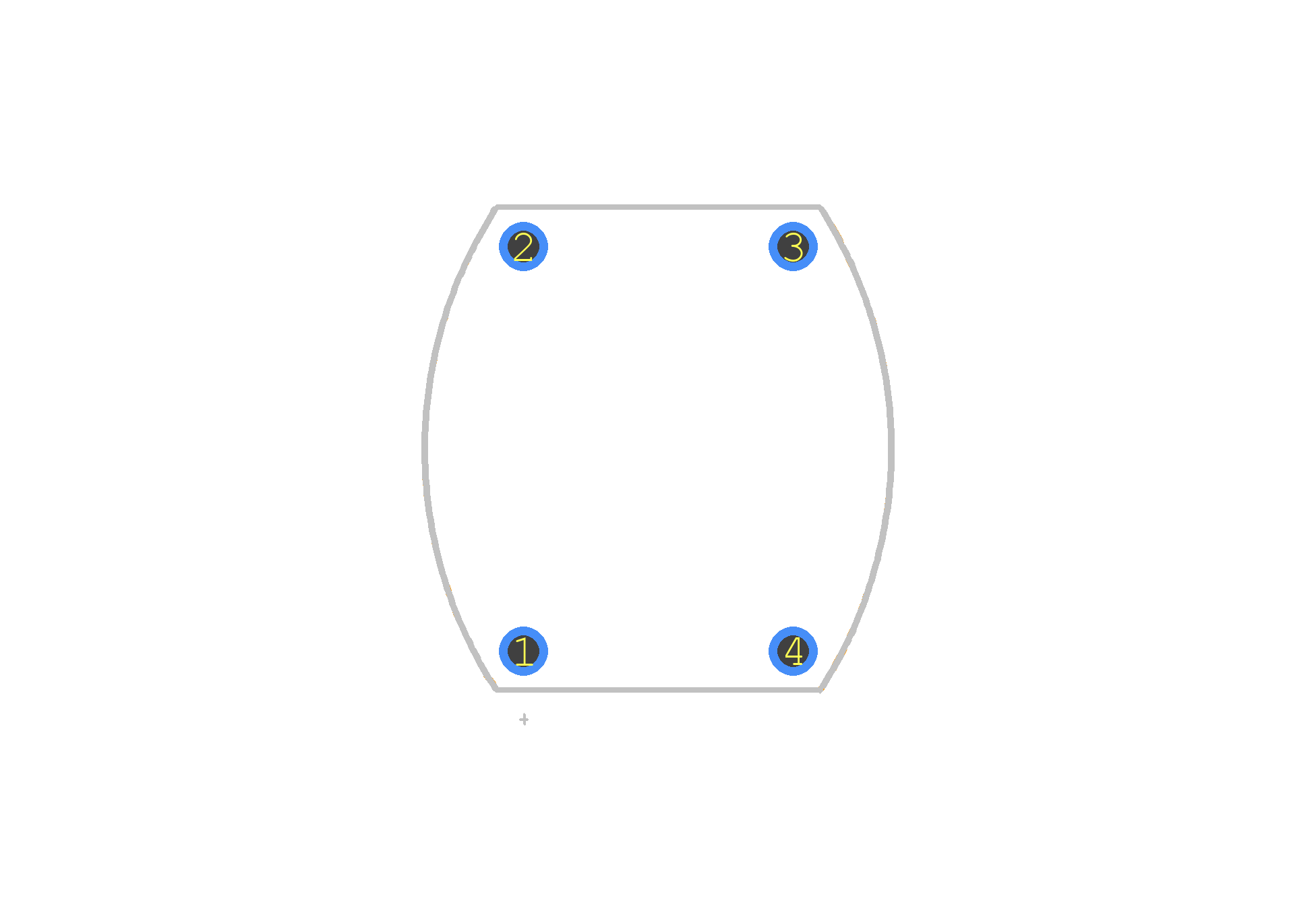

B82721A2401N020 - TDK PCB footprint - Other - Other - B82721A
click to zoom
3D Models
B82721A2401N020 - TDK - 3D model - Other - B82721A
click to zoom

B82721A2401N020 Details

  • Manufacturer Part Number:

    B82721A2401N020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    2 Ω

  • Inductance-Nom (L):

    39000 µH

  • Inductor Application:

    COMMON MODE CHOKE

  • Inductor Type:

    COMMON MODE CHOKE

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.7 mm

  • Lead Length:

    3 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    12.6 mm

  • Package Length:

    17.9 mm

  • Package Style:

    PCB Mount

  • Package Width:

    17.3 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    0.4 A

  • Reference Standard:

    EN; IEC; UL; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82721A2401N020 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a ground plane underneath the inductor to minimize radiation and ensure optimal performance. A minimum of 1.5 mm clearance around the inductor is recommended to prevent electromagnetic interference.
  • The B82721A2401N020 is rated for operation up to 125°C, but its inductance value may decrease by up to 20% at high temperatures. Engineers should consider derating the inductor's performance and ensuring adequate thermal management in their design.
  • TDK recommends a reflow soldering process with a peak temperature of 260°C for 10-30 seconds. Engineers should ensure that the soldering process does not exceed these parameters to prevent damage to the inductor.
  • The B82721A2401N020 is designed to withstand vibrations up to 10 G (10-2000 Hz). However, engineers should consider additional mechanical fixation or potting to ensure the inductor remains securely in place in high-vibration applications.
  • When used in parallel or series configurations, the inductor's behavior can be complex and dependent on the specific application. Engineers should consult TDK's application notes and perform thorough simulations to ensure the desired performance is achieved.
