B82721A2701N020 - TDK

Description: Power Line Chokes, L=10mH Rated current=0.7A, LxWxT:17.9mmx17.3mmx12.6mm

Download B82721A2701N020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

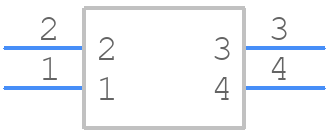

B82721A2701N020 - TDK - PCB symbol
click to zoom
PCB Footprints

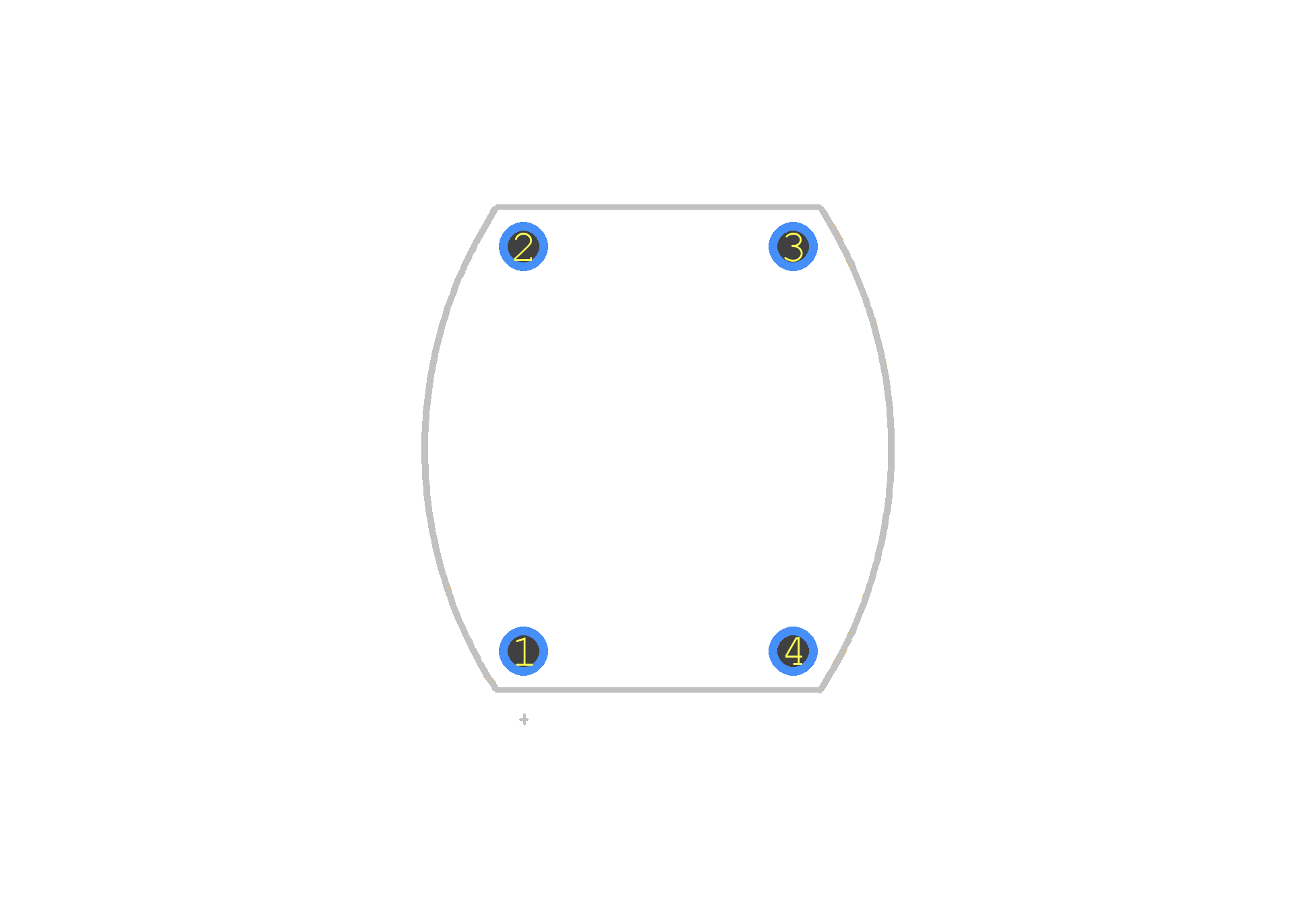

B82721A2701N020 - TDK PCB footprint - Other - Other - B82721A
click to zoom
3D Models
B82721A2701N020 - TDK - 3D model - Other - B82721A
click to zoom

B82721A2701N020 Details

  • Manufacturer Part Number:

    B82721A2701N020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.55 Ω

  • Inductance-Nom (L):

    10000 µH

  • Inductor Application:

    COMMON MODE CHOKE

  • Inductor Type:

    COMMON MODE CHOKE

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.7 mm

  • Lead Length:

    3 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    12.6 mm

  • Package Length:

    17.9 mm

  • Package Style:

    PCB Mount

  • Package Width:

    17.3 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    0.7 A

  • Reference Standard:

    EN; IEC; UL; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82721A2701N020 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B82721A2701N020 can be found in the TDK Corporation's application note or footprint library. It is essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and electrical issues.
  • While the datasheet provides temperature ratings, it's essential to note that the B82721A2701N020 is designed to operate within a specific temperature range. Exceeding this range may affect its performance, and it's recommended to consult with TDK Corporation or conduct thermal simulations to ensure the inductor meets the application's temperature requirements.
  • The B82721A2701N020 is designed for high-frequency applications, but its performance may degrade above a certain frequency threshold. It's crucial to review the datasheet's frequency characteristics and consult with TDK Corporation or conduct simulations to ensure the inductor meets the application's frequency requirements.
  • The recommended soldering process for the B82721A2701N020 can be found in the TDK Corporation's application note or soldering guide. It's essential to follow the recommended soldering process to prevent damage to the component and ensure reliable operation.
  • While the datasheet provides current ratings, it's essential to consider the inductor's ability to handle high-current surges or spikes. TDK Corporation may provide additional information or recommendations for mitigating the effects of high-current surges or spikes in specific applications.
