B82722A2302N001 - TDK

B82722A2302N001 Frequently Asked Questions (FAQs)

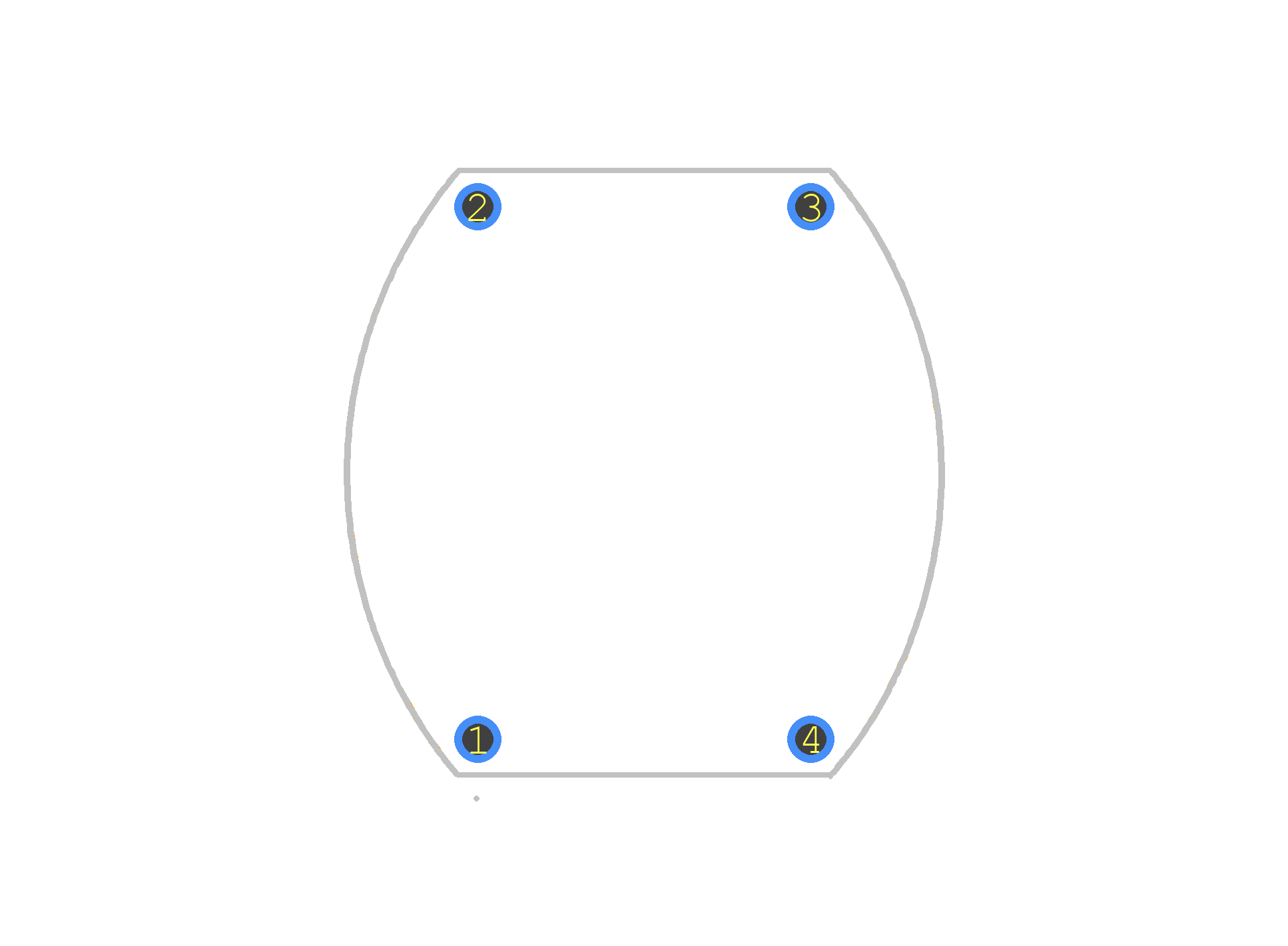

• What is the recommended land pattern for this inductor?
  The recommended land pattern for the B82722A2302N001 can be found in the TDK Corporation's application note or footprint library. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and electrical issues.
• How do I handle the inductor's thermal derating?
  The thermal derating of the B82722A2302N001 inductor is typically handled by reducing the current rating as the operating temperature increases. The derating curve can be found in the datasheet or in TDK's application notes. It's crucial to consider the thermal derating to prevent overheating and ensure reliable operation.
• What is the self-resonant frequency (SRF) of this inductor?
  The self-resonant frequency (SRF) of the B82722A2302N001 inductor is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. Alternatively, you can contact TDK Corporation's technical support for more information on the SRF.
• Can I use this inductor in a high-frequency application?
  The B82722A2302N001 inductor is designed for general-purpose use and may not be suitable for high-frequency applications. The inductor's performance at high frequencies can be affected by its parasitic capacitance and resistance. It's recommended to consult with TDK Corporation's technical support or consider using a high-frequency inductor specifically designed for such applications.
• How do I ensure the inductor's reliability in a high-reliability application?
  To ensure the reliability of the B82722A2302N001 inductor in a high-reliability application, it's essential to follow proper storage, handling, and soldering procedures. Additionally, consider using a inductor with a higher reliability rating, such as those with a longer lifespan or higher temperature rating. It's also recommended to consult with TDK Corporation's technical support for more information on the inductor's reliability.
