B82723A2402N001 - TDK

Description: Power Line Chokes, L=2.7mH Rated current=4A, LxWxT:28mmx27mmx16.8mm

Download B82723A2402N001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82723A2402N001 - TDK - PCB symbol
click to zoom
PCB Footprints

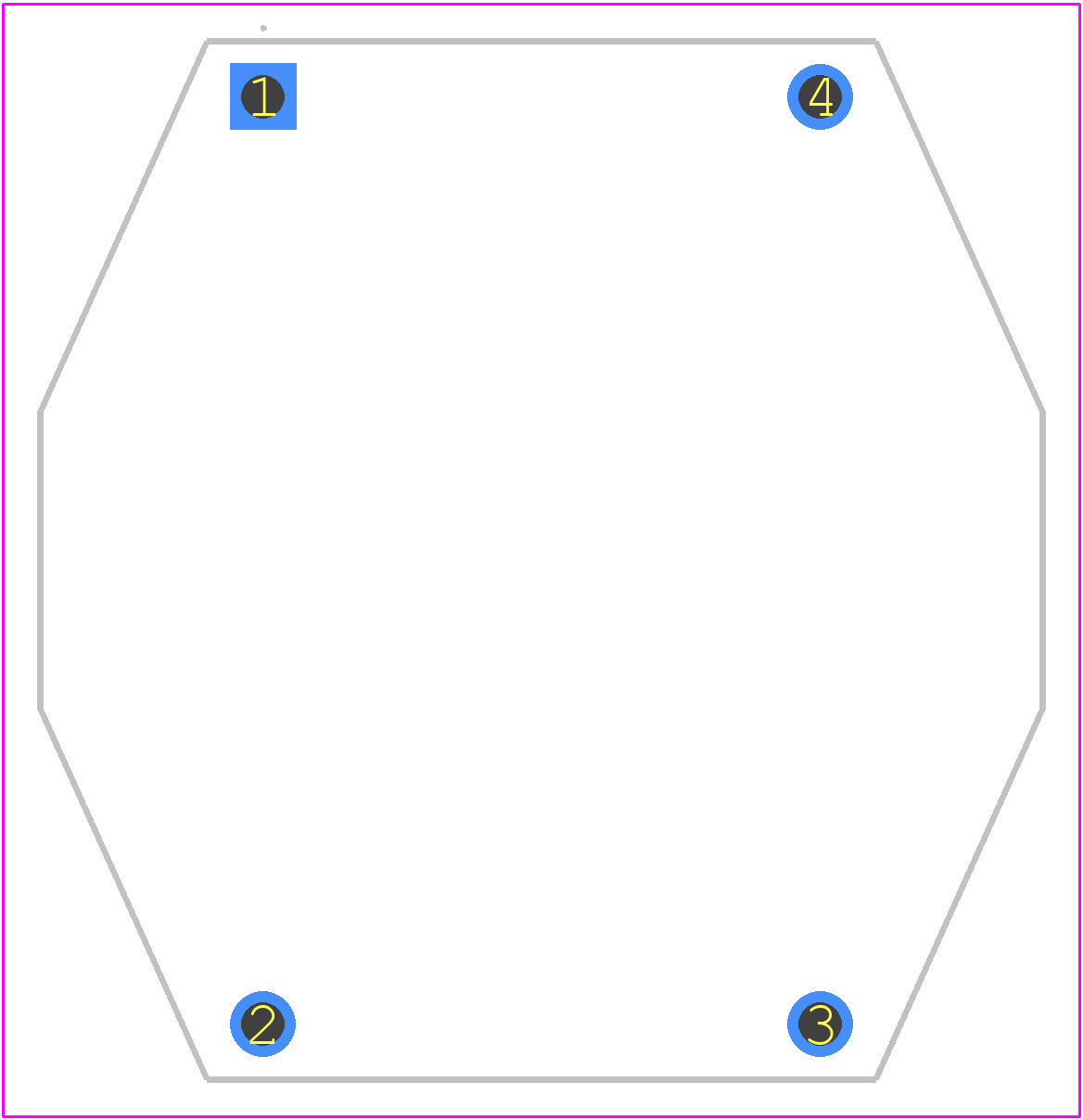

B82723A2402N001 - TDK PCB footprint - Other - Other - B82723A_3
click to zoom
3D Models
B82723A2402N001 - TDK - 3D model - Other - B82723A_3
click to zoom

B82723A2402N001 Details

  • Manufacturer Part Number:

    B82723A2402N001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.06 Ω

  • Inductance-Nom (L):

    2700 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Length:

    4 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    16.8 mm

  • Package Length:

    28 mm

  • Package Style:

    Radial

  • Package Width:

    27 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    4 A

  • Reference Standard:

    EN; IEC; UL; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82723A2402N001 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B82723A2402N001 can be found in the TDK Corporation's application note or footprint library. It typically includes a rectangular pad with a size of around 2.5mm x 1.6mm, with a 0.5mm hole in the center for the inductor's terminal.
  • The B82723A2402N001 has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to consider thermal management during PCB design. This includes providing adequate spacing between components, using thermal vias, and selecting a suitable PCB material with high thermal conductivity.
  • The current rating derating curve for the B82723A2402N001 can be obtained from TDK Corporation's technical support or application engineers. This curve provides information on how the inductor's current rating changes with temperature, allowing designers to ensure safe and reliable operation.
  • The B82723A2402N001 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with TDK Corporation's technical support to determine the inductor's suitability and potential derating requirements.
  • The B82723A2402N001 has an MSL rating of 1, which means it can withstand normal humidity levels without special handling or storage requirements. However, it's still essential to follow proper storage and handling procedures to prevent damage.
