B82724B2602N001 - TDK

Description: Epcos 1800 μH ±30% Ferrite Power Inductor, 6A Idc, 0.023Ω Rdc B82721A

Download B82724B2602N001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82724B2602N001 - TDK - PCB symbol
click to zoom

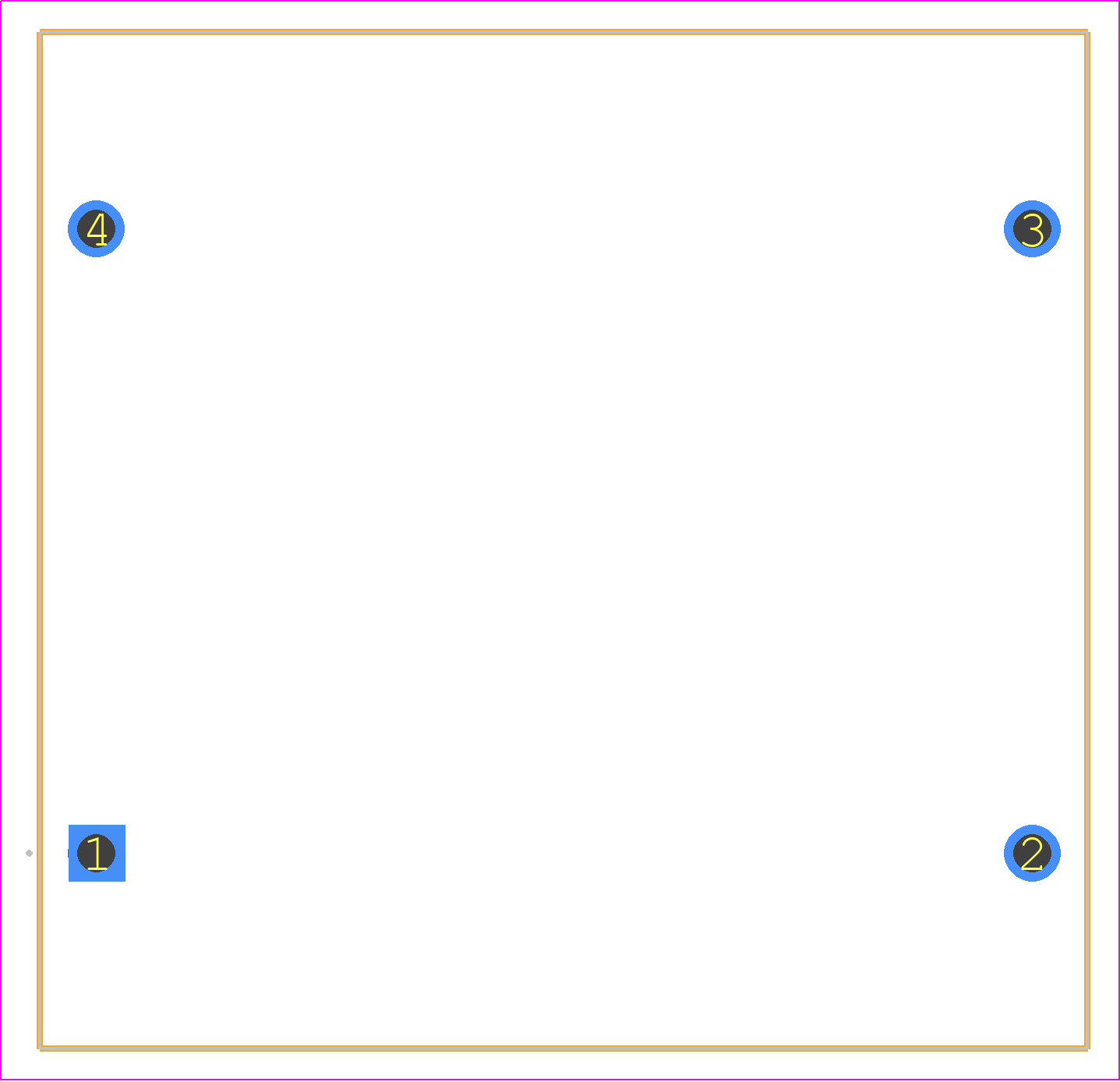

PCB Footprints
B82724B2602N001 - TDK PCB footprint - Other - Other - B82724B
click to zoom
3D Models
B82724B2602N001 - TDK - 3D model - Other - B82724B
click to zoom

B82724B2602N001 Details

  • Manufacturer Part Number:

    B82724B2602N001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    India, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.023 Ω

  • Inductance-Nom (L):

    1800 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.7 mm

  • Lead Length:

    4 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    25 mm

  • Package Length:

    33.6 mm

  • Package Style:

    Radial

  • Package Width:

    32.6 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    6 A

  • Reference Standard:

    EN; IEC; UL; VDE

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.01 MHz

  • Tolerance:

    30%

B82724B2602N001 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
  • While the datasheet provides core losses and impedance characteristics, it's essential to consider the inductor's behavior under high-frequency switching conditions. TDK's simulation models and application notes can help engineers understand the inductor's performance in their specific application.
  • The datasheet specifies the rated voltage, but engineers should also consider the maximum allowable voltage across the inductor, including any voltage spikes or transients. TDK's application notes and technical support can provide guidance on this topic.
  • While the datasheet provides temperature-related specifications, engineers may want to know how the inductor's performance changes across the operating temperature range. TDK's application notes and technical support can provide more detailed information on temperature-related performance characteristics.
  • Yes, TDK provides guidelines for soldering and rework in their application notes and technical documentation. Engineers should follow these guidelines to ensure reliable assembly and minimize the risk of damage to the component.
